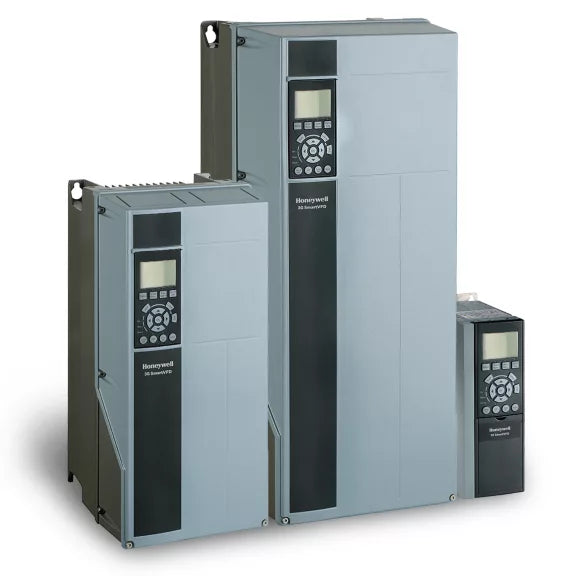

Honeywell HVFD3D3A0050G200C Variable Frequency Drive 5 HP

Product Description

The Honeywell HVFD3D3A0050G200C is a variable frequency drive (VFD) intended for HVAC use. This model controls the speed and torque of three-phase induction, permanent magnet, and synchronous reluctance motors by modifying the frequency and voltage applied. It functions within a voltage range of two hundred eight to two hundred thirty volts and supports a power capacity of five horsepower, which is four kilowatts.

• Designed for HVAC pump, fan, and compressor applications.
• Equipped with embedded communications including BACnet, Modbus, FLN, and N2.
• Includes protections for overvoltage, undervoltage, ground fault, overcurrent, and overtemperature.

Product Highlights

This unit is enclosed in a NEMA 12 housing to protect against dust, dirt, and dripping non-corrosive liquids, making it suitable for various environmental conditions.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: HVFD3D3A0050G200C
• Voltage: 208/230V
• Horsepower: 5
• Power: 4 kW
• Enclosure Rating: Nema 12
• Certifications: CE, cUL, RoHS compliant
• Compliance: EN 61000-3-12 compliant, EN 61800-3 Category C1, C2 and C3
• Short-Circuit Current Rating: 100KA SCCR
