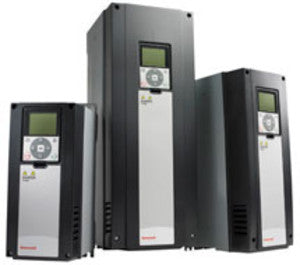

HONEYWELL HVFD3D3A0020G100C Variable Frequency Drive 2 hp 208/230 VAC NEMA 1

Product Description

The Honeywell HVFD3D3A0020G100C is a variable frequency drive built for HVAC systems. This drive efficiently controls motors by varying the frequency and voltage supplied to them. The VFD suits both constant-torque and variable-torque applications, making it suitable for pumps and fans.

• Designed for HVAC applications
• Include Ethernet and RS485 communication options
• Supports multiple protocols: BACnet, Modbus, and JCI N2

Product Highlights

This product allows for customizable acceleration and deceleration settings, ensuring smooth operation of connected motors. The Honeywell HVFD3D3A0020G100C features multiple configurable digital and analog inputs and outputs, facilitating versatile control options.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: HVFD3D3A0020G100C

Technical Specifications

• Horsepower: 2 hp
• Input Voltage: 208 VAC, 230 VAC
• Phase: Three Phase
• Motor Rating: 0.75 to 250 hp
• Frequency Range: 0-320 Hz
• Acceleration Time: Adjustable 0.1 - 3000 seconds
• Deceleration Time: Adjustable 0.1 - 3000 seconds
• Digital Inputs (D.I.): 6 configurable D.I., 24 VDC on, 0 VDC off
• Analog Input: 2; 0-10V or 4-20 mA voltage, input impedance 200k, current impedance 250k
• Digital Output: Open collector, 48V/50 mA
• Analog Output: One programmable output; 0-10 VDC or 4-20 mA @ 500mA max
• Relay Outputs: Two SPDT
• Load Max.: 8A at 24 VDC or 250 VAC, 0.4A at 125 VDC
• Load Min.: 10mA at 5 VAC/VDC
• Filter Type: 5% DC choke, Class 2 GMC/RFI
• EMC: EN50082 (-1, -2), EN61800-3
• Communication Protocol: RS485 (Terminals), JCI N2, MODBUS, BACnet MS/TP
• Operating Temperature: 14°F to 104°F (-10°C to 40°C)
• Operating Humidity: 0 to 95% RH (non-condensing)
• Approvals: UL Listed File E190898, CE, RoHS
• Warranty: 3 years
• NEMA Rating: NEMA 1
• Item Weight: 10.58 lbs per EA
