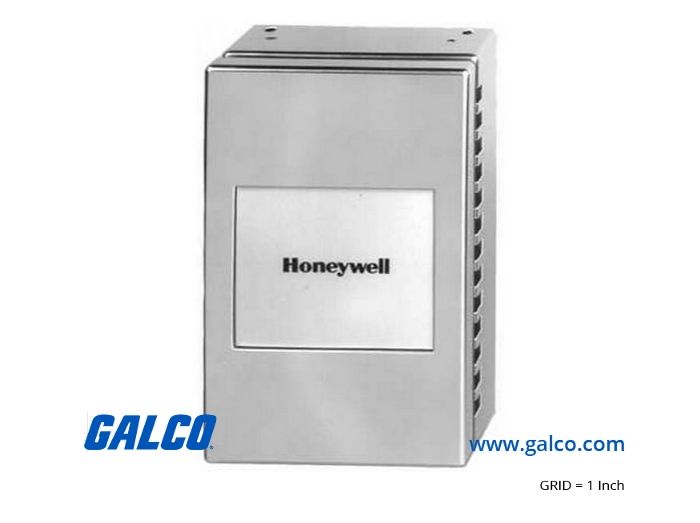

HONEYWELL HP971A1008/U HUMIDISTAT 15 - 75% RH

Product Description

The HONEYWELL HP971A1008/U is a humidity sensor designed for pneumatic systems operating within a humidity range of fifteen to seventy-five percent relative humidity. This sensor can be mounted vertically or horizontally and is compatible with one or two-pipe systems. It works well with RP908 and RP920 controllers to provide precise control for pneumatic valve or damper actuators.

• Corrosion-resistant materials ensure durability.
• Plug-in air head connections simplify installation.
• Factory calibrated for reliable performance.

Product Highlights

This sensor provides continuous humidity readings and can utilize either integral or external restrictions as required.

Product Information

Standard Information

• Application: Humidity Sensor
• Airflow Usage: 0.022 scfm (10.4 mL/s)

Technical Specifications

• Connections: Push-on barb for five thirty-seconds inch O.D. tubing
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: Twenty-five psi (one hundred seventy-two kPa)
• Temperature Range: Up to one hundred twenty-five degrees Fahrenheit (fifty-two degrees Celsius)
• Mounting Options: Vertical or horizontal, suitable for wall or duct installation
• Sensor Range: Fifteen to seventy-five percent RH
