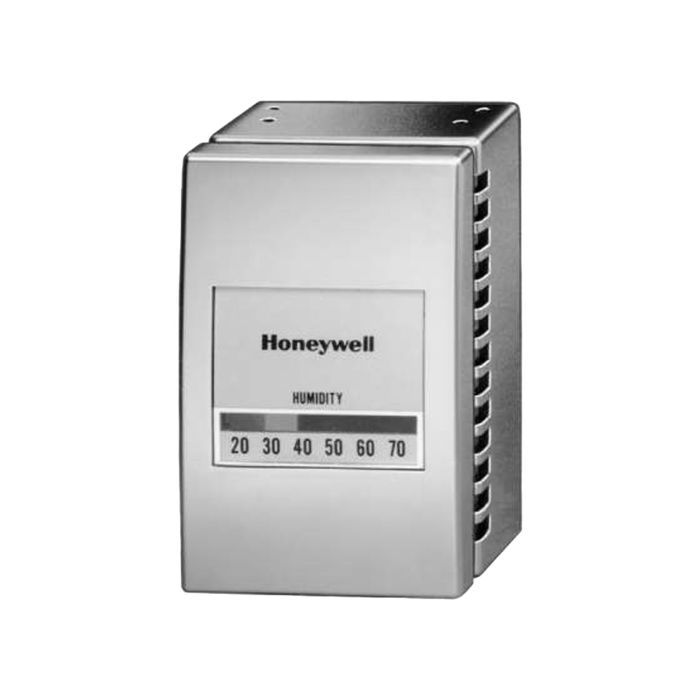

Honeywell HP970B1007/U Pneumatic Humidistat 15-75% RH Replacement HP970B1007/U

Product Description

The Honeywell HP970B1007/U is a pneumatic humidistat designed to control humidity levels in HVAC systems. It features reverse acting capabilities, allowing it to function effectively in various applications. This model supports humidity levels ranging from fifteen to seventy-five percent relative humidity in five percent increments.

• Features straight set point scales for precise adjustments.
• Constructed with corrosion-resistant materials.
• Includes plug-in air connections for easy installation.

Product Highlights

This durable humidistat is ideal for controlling pneumatic valves in both humidification and dehumidification systems, ensuring consistent humidity levels.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: HP970B1007/U

Technical Specifications

• Application: Humidity Control
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: 25 psi (170 kPa)
• Temperature Range: 45°F to 125°F (7°C to 52°C)
• Action: Reverse Acting
• Number of Pipes: 2
• Scale Markings: 15 to 75% RH
