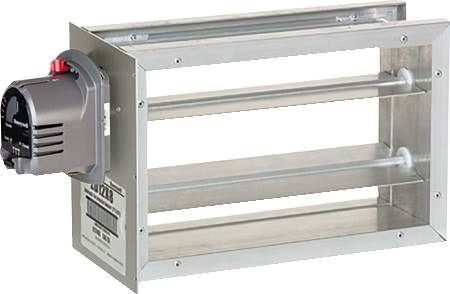

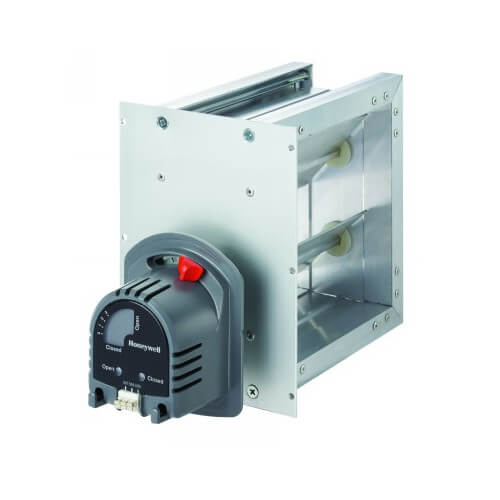

Honeywell Home ZD6X14TZ 6x14 TrueZONE Rectangular Parallel Blade Zone Damper

Product Description

The Honeywell Home ZD6X14TZ is a robust rectangular parallel blade damper ideal for regulating air flow in HVAC systems. This model features a 24-volt spring return motor, often employed in TrueZONE and other advanced zoning systems.

• Equipped with Kevlar gearing to extend damper life significantly.
• Features adjustable range stops and mechanical visual indicators for damper status.
• Constructed with an extruded aluminum frame and blades for durability.

Product Highlights

This damper can be mounted in various orientations, ensuring flexible installation options across different setups. It operates with a two-wire installation process, simplifying wiring tasks and reducing installation time.

Product Information

Standard Information

• Brand: Honeywell Home
• Motor Side: 14 inches

Technical Specifications

• Motor Type: 24-volt spring return
• Installation Orientation: Flexible, can be mounted on either bottom or side
• Dimensions: 6 inches by 14 inches
• Voltage: 24V
• Control Type: Normally open
• Leakage: Low due to parallel blade design
• Operation: Quieter with fewer blades
