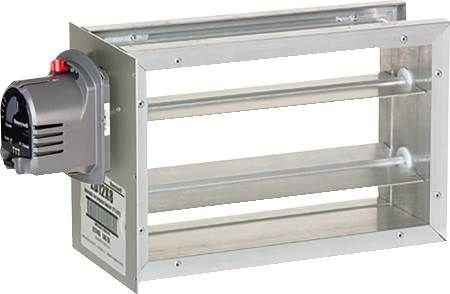

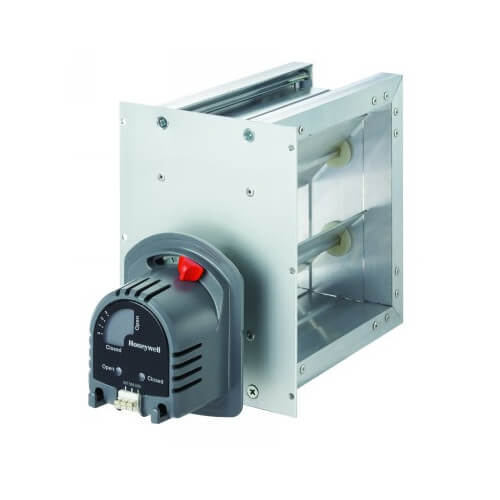

Honeywell Home ZD22X14TZ 22 in. x 14 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD22X14TZ damper controls airflow in HVAC systems with a 24-volt motor for precise regulation. Built for heating, cooling, and ventilating applications, it automates air circulation when used with TrueZONE and other electronic zoning systems.

• Robust aluminum frame with parallel blade design ensures durability and minimal air leakage.
• Kevlar gearing enhances longevity, more than doubling the life span of the damper.
• Simplified two-wire installation process for quick setup.

Product Highlights

Featuring a fail-safe spring return motor, the damper maintains airflow in the normally open mode, with adjustable range stops for customized operation. A visible mechanical indicator displays the damper's position.

Technical Specifications

• Dimensions: 22 inches by 14 inches
• Motor Orientation: Mounted on the shorter side (14 inches side)
• Motor Type: 24-volt, spring return
• Construction: Extruded aluminum frame and blades
• Installation Orientation: Flexible, can be installed on either duct side or bottom
