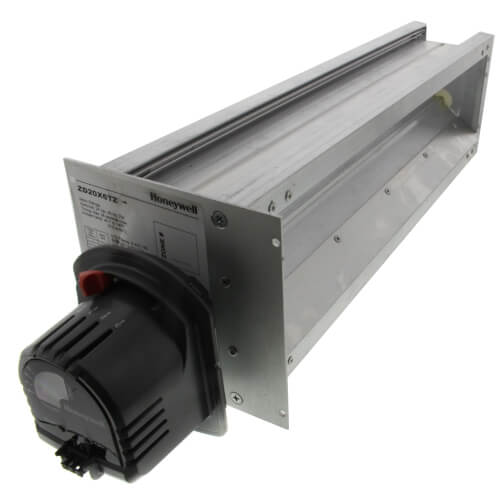

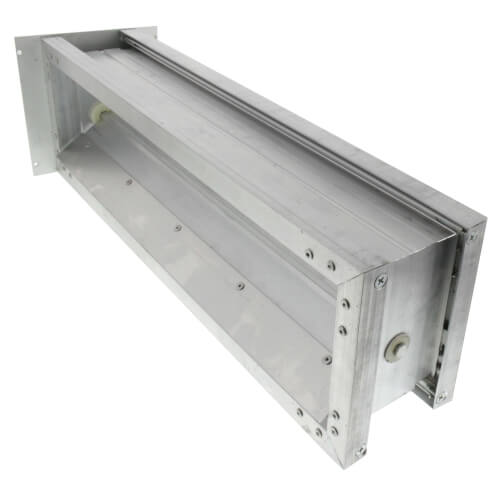

Honeywell Home ZD20X6TZ 20 in x 6 in TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD20X6TZ damper is designed to control air flow in HVAC systems, ensuring optimal environmental conditions with its power close and spring open mechanism. This 24-volt motorized damper is ideally used where a normally-open configuration is necessary, particularly compatible with TrueZONE and other electronic zoning systems.

• Kevlar gear technology enhances durability and extends the life of the damper.
• Features adjustable range stops and a visual indicator for real-time damper status.
• Constructed from extruded aluminum for robustness, with a parallel blade design for efficient low leakage operation.

Product Highlights

Engineered for quieter performance with fewer blades, this damper promises reliability with its strong 24-volt spring-return motor. Easy two-wire installation process simplifies setup while being compatible with both conventional and networked zoning solutions.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD20X6TZ
• Dimension: 20 inches by 6 inches
• Motor: 24-volt spring return

Technical Specifications

• Motor Position: Mounted on the shorter side
• Material: Extruded aluminum frame and blades
• Operation: Power close, spring open
• Installation Flexibility: Can be installed in any orientation
