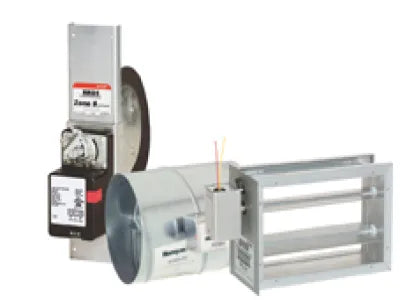

Honeywell Home ZD20X14TZ/U Rectangular Zone Dampers 24V (20 in H x 14 in W)

Product Description

The Honeywell Home ZD20X14TZ/U is a rectangular zone damper designed for HVAC systems. This product operates with a 24-volt motor and functions as a power close and spring open damper. It is suitable for applications requiring a normally-open damper, primarily used with Honeywell’s TrueZONE systems.

• Easy-to-wire 24-volt damper for HVAC systems.
• Durable aluminum construction for reliable performance.
• Compatible with multiple Honeywell zoning systems.

Product Highlights

This zoned damper ensures effective air control in residential HVAC systems.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD20X14TZ/U

Technical Specifications

• Size: 20 inches H x 14 inches W
• Shape: Rectangle
• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Material: Aluminum
• Blade Action: Parallel
• Rotation Angle: 90 degrees
• Temperature Rating: 32 to 120 degrees F
• Timing: 30 seconds power closed, 10 seconds spring return
• Electrical Connections: M1-Power/M6-Common/M4-LED Indication Terminal
