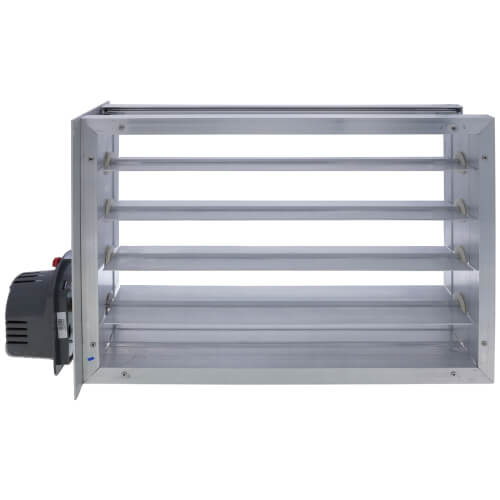

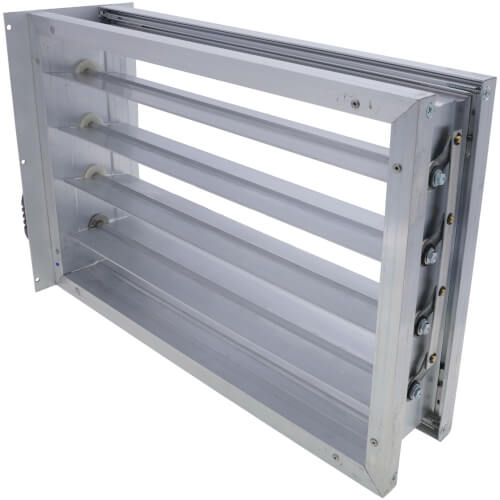

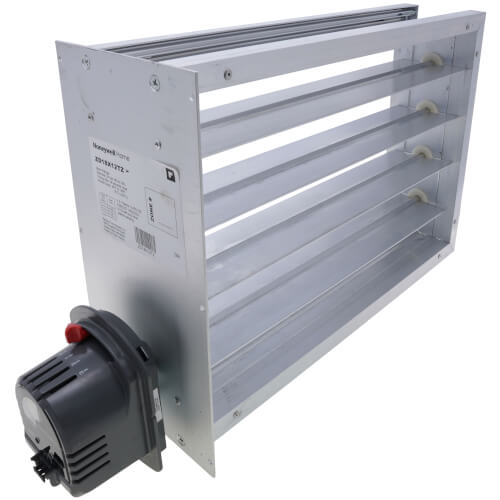

Honeywell Home ZD18X12TZ 18 in x 12 in TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD18X12TZ represents a premium solution in the control of air circulation within HVAC systems. This model features a power close and spring open mechanism, pivotal for both heating, cooling, and air quality management, and is specifically designed for use with TrueZONE and other electronic zoning systems.

• Equipped with a durable 24-volt motor ensuring reliable, consistent performance.
• Built with an extruded aluminum frame and blades for a robust, low leakage construction.
• Failsafe normally open operation with easy, two-wire installation.

Product Highlights

This damper is optimized for low noise operation and extended lifespan, courtesy of its Kevlar gearing, which significantly reduces wear.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD18X12TZ

Technical Specifications

• Size: 18 inches x 12 inches
• Motor Type: Spring Return
• Shape: Rectangular
• Voltage: 24v
• Wiring: 2 Wires
• Installation Orientation: Flexible, mountable on either the bottom or side of the duct
