Honeywell Home ZD16X14TZ 16x14 inch TrueZONE Rectangular Parallel Blade Damper

Product Description

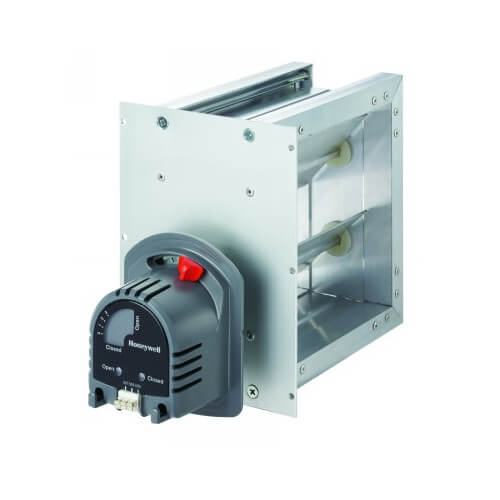

The Honeywell Home ZD16X14TZ TrueZONE Damper is designed for optimizing air flow through your HVAC systems. This damper integrates a sturdy 24-volt motor, ensuring reliable operation in circulating air for heating, cooling, and ventilating systems.

• Engineered with robust extruded aluminum frame and blades.
• Kevlar gearing enhances durability, significantly extending the damper's life.
• Simple two-wire installation process.

Product Highlights

This TrueZONE Damper, sized 16 inches by 14 inches, features a parallel blade design to minimize leakage and ensure efficient performance. It's equipped with a powerful spring-return motor for fail-safe, normally open operation. Compatible with both conventional and networked zoning systems, the damper offers adjustable range stops and a visual mechanical indicator that displays damper status.

Product Information

Standard Information

• Motor Type: 24V Spring Return
• Control Type: Power close and spring open mechanism

Technical Specifications

• Size: 16 inches x 14 inches
• Weight: 7.9 pounds
• Installation Orientation: Flexible, can be installed in any orientation
• Voltage: 24V
