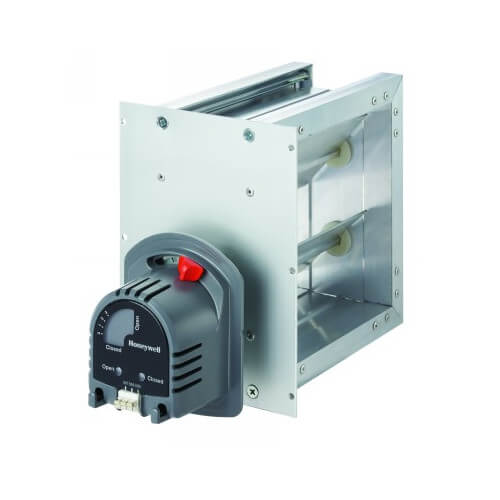

Honeywell Home ZD14X18TZ 14 in. x 18 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

The Honeywell Home ZD14X18TZ is a 14-inch by 18-inch TrueZONE rectangular parallel blade damper. This damper utilizes a 24-volt motor to control air circulation in heating, cooling, and ventilation systems. It is designed for use in systems requiring a normally-open damper, including TrueZONE and other electronic zoning systems.

• Power close and spring open operation
• Adjustable range stops for tailored performance
• Solid construction with an extruded aluminum frame

Product Highlights

This damper features Kevlar gearing, extending the life of the damper by reducing wear. The mechanical visual position indicator displays damper status and operation. The design enables quieter operation with fewer blades, and it supports easy, two-wire installation.

Product Information

Standard Information

• Application: Air Quality
• Shape: Rectangular
• Motor: Spring Return
• Voltage: 24V

Technical Specifications

• Size: 14 x 18 inches
• Weight: 3.315 lbs
• Shipping Dimensions: 23.75 inches (Depth) x 18 inches (Width) x 6.5 inches (Height)
• Wires to Motor: 2
• Compatible Systems: TrueZONE and electronic zoning systems
