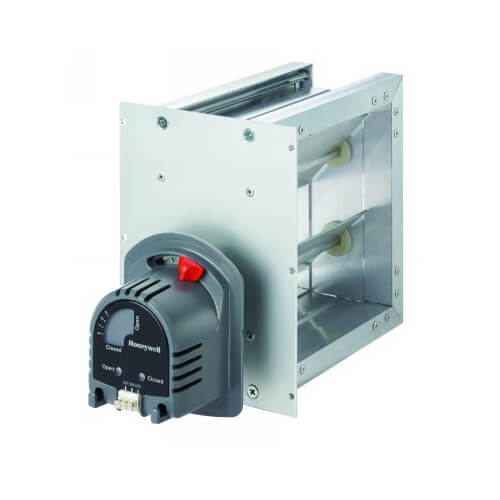

Honeywell Home ZD10X8TZ 10 in. x 8 in. TrueZONE Rectangular Parallel Blade Damper

Product Description

Honeywell Home introduces the ZD10X8TZ TrueZONE Rectangular Parallel Blade Damper, engineered for HVAC systems requiring a normally-open configuration. This damper integrates a 24-volt motor, optimized for regulating air flow in heating, cooling, and ventilation applications.

• Enhanced durability with Kevlar-enhanced gearing.
• Features adjustable range stops and a mechanical visual position indicator.
• Constructed from robust extruded aluminum with a parallel blade design for superior sealing.

Product Highlights

The Honeywell Home ZD10X8TZ damper facilitates quieter operation and minimal air leakage, offering reliable performance with its strong spring-return motor. Order by specifying the orientation, ensuring correct motor placement.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD10X8TZ

Technical Specifications

• Voltage: 24V
• Motor Side: 8 inches
• Dimensions: 10 in x 8 in
• Weight: 4.8 lbs
• Installation: Can be mounted in any duct orientation
• Application: Air quality control in HVAC systems
