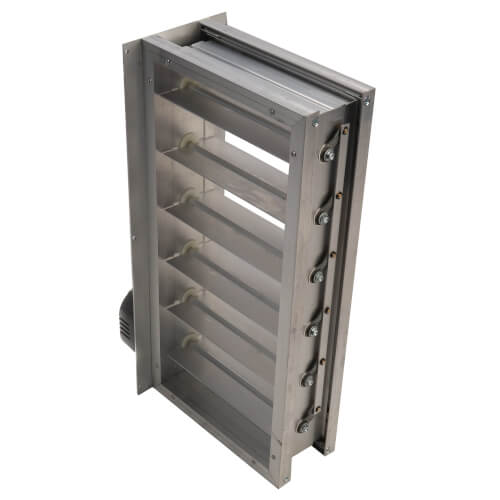

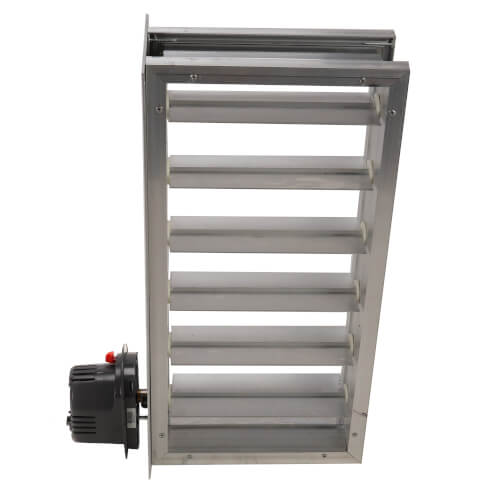

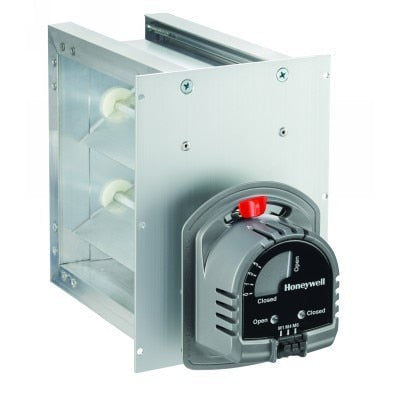

Honeywell Home ZD10X20TZ TrueZONE Rectangular Parallel Blade Damper 10 x 20

Product Description

The Honeywell Home ZD10X20TZ TrueZONE Rectangular Parallel Blade Damper offers advanced control for HVAC systems. This damper features a 10-inch by 20-inch frame and a 24-volt motor.

• Kevlar gearing reduces wear and extends damper life.
• Adjustable range stops for focused control.
• Mechanical visual position indicator for easy status checks.

Product Highlights

Solid construction using an extruded aluminum frame and blades, combined with a parallel blade design, ensures low leakage performance. This damper operates quietly with a minimal number of blades and is easy to wire for installation. It includes a reliable 24-volt spring-return motor for fail-safe, normally open operation, compatible with both conventional and networked zoning systems.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD10X20TZ
• SKU: 4558917992559
• Category: HVAC Supplies > Dampers > Honeywell ZD Dampers

Technical Specifications

• Size: 10 x 20 inches
• Motor: Spring Return
• Shape: Rectangular
• Voltage: 24V
• Wires to Motor: 2
• Weight: 8 pounds
• Length: 20.85 inches
• Width: 7.65 inches
• Height: 16.4 inches
• Country of Origin: Mexico
