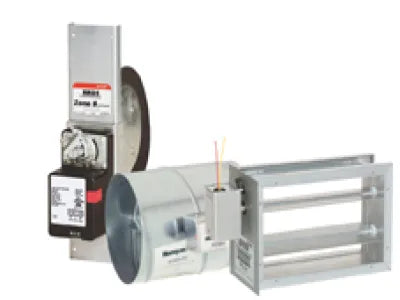

Honeywell Home ZD10X18TZ/U Rectangular Zone Dampers 24V

Product Description

The Honeywell Home ZD10X18TZ/U is a rectangular zone damper designed for effective airflow control in HVAC systems. It is suitable for use in residential applications and is a direct replacement for legacy dampers. This damper features a 24-volt motor for reliable operation.

• Power close and spring open design for reliable performance.
• Simple wiring with push terminals for easy installation.
• Mechanical visual position indicator for damper status.

Product Highlights

This product is compatible with Honeywell TrueZONE systems and can be mounted in various orientations, making it versatile for different duct configurations.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD10X18TZ/U

Technical Specifications

• Size: 10 inches H x 18 inches W
• Shape: Rectangle
• Material: Aluminum
• Motor Type: Power Open/Spring Closed
• Voltage Rating: 24 VAC
• Amperage Rating: 0.32 A
• Temperature Rating: 32 to 120 degrees F
• Max Rotation Angle: 90 degrees
