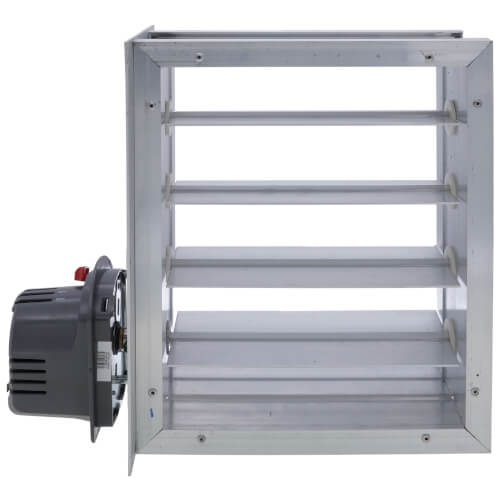

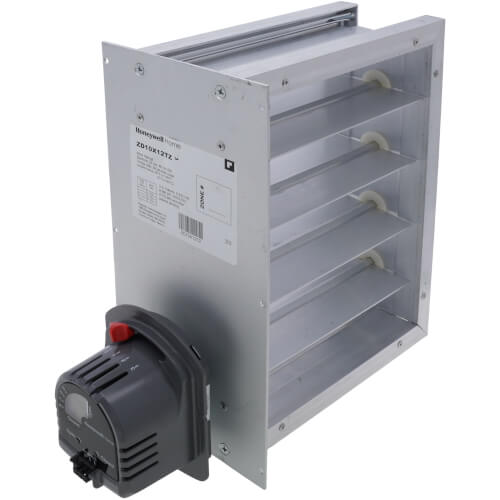

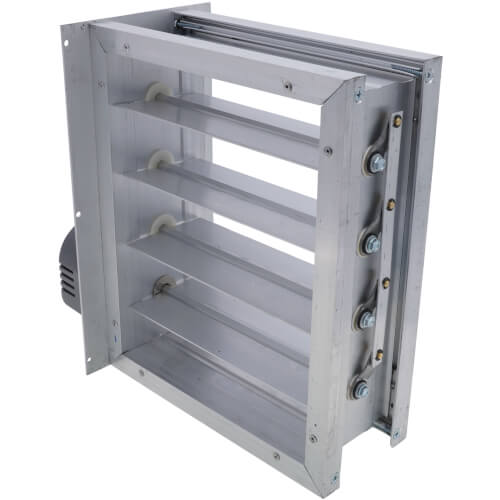

Honeywell Home ZD10X12TZ 10 in x 12 in TrueZONE Rectangular Parallel Blade Damper Replacement ZD10X12

Product Description

Introducing the Honeywell Home ZD10X12TZ, a 10 inch by 12 inch TrueZONE Rectangular Parallel Blade Damper, expertly designed for use in heating, cooling, and ventilation systems. Ideal for applications requiring a normally-open configuration, this damper features a 24-volt motor that ensures reliable performance.

• Equipped with Kevlar gearing for minimal wear and enhanced durability.
• Features adjustable range stops and a mechanical visual position indicator for easy monitoring of damper status.
• Constructed from robust extruded aluminum with a parallel blade design for reduced leakage and quieter operation.

Product Highlights

The Honeywell Home ZD10X12TZ supports both conventional and networked zoning setups. Its simple, two-wire installation process makes setup straightforward without compromising on reliability. Complemented by a strong, spring-return motor that provides fail-safe operation, this damper is an excellent choice for modernizing air quality control in any setup.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: ZD10X12TZ

Technical Specifications

• Motor Voltage: 24v
• Motor Position: Mounted on the 12 inch side
• Shape: Rectangular
• Material: Extruded Aluminum
• Feature: Adjustable Range Stops
• Installation: Two-wire setup
• Operation: Spring-return, normally open
