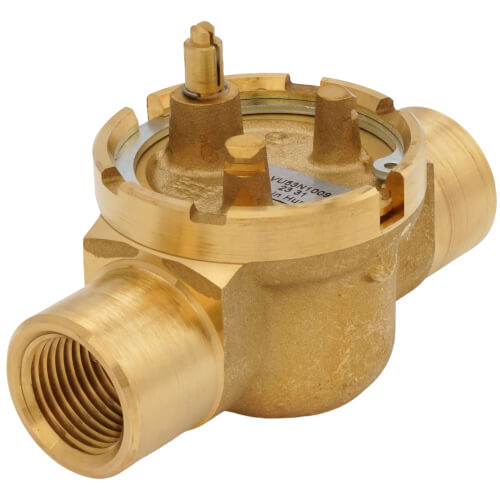

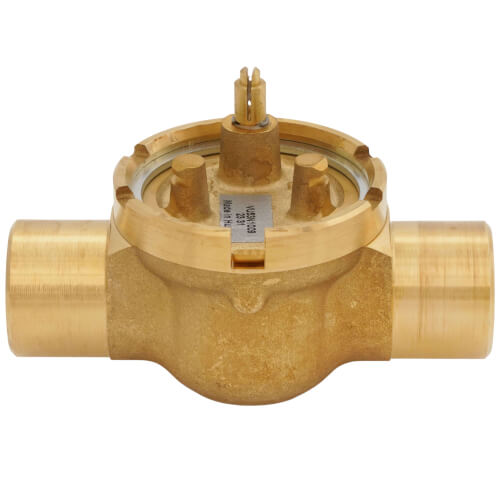

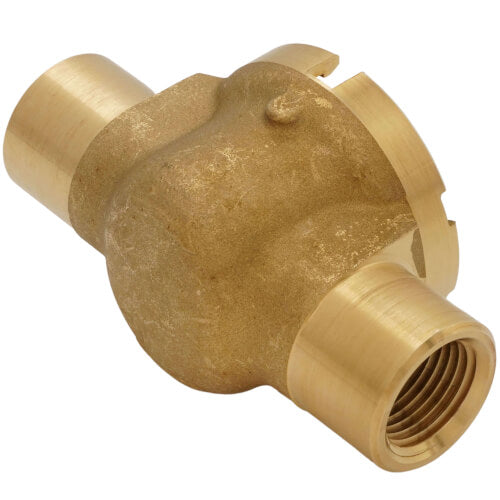

Honeywell Home VU53N1009 Two-way Fan Coil Valve 1/2 inch NPT 3.5 Cv

Product Description

Engineered for precision in commercial HVAC systems, the Honeywell Home VU53N1009 two-way fan coil valve offers reliable control of hot and chilled water flow. This valve is exclusively designed for environments where dissolved oxygen is not present, making it ideal for fan coil units, terminal reheat coils, and convectors.

• Efficiently manages water flow in heating and cooling applications.
• Supports pressures up to 300 psi with a patented ball seal for durability and triple O-ring seal against corrosion.
• Compatible with iron or steel piping with NPT end connections.

Product Highlights

The valve presents a straight-through body pattern and quick opening flow characteristics, ensuring prompt response to HVAC system demands. It's built for use with VU444 or VU844 actuators, though these must be purchased separately.

Specifications

Technical Specifications

• Valve Type: Fan Coil Valve
• Body Pattern: Two-way, Straight-through
• Flow Characteristics: Quick Opening
• Controlled Medium: Chilled or hot water up to 60% Glycol
• Maximum Safe Operating Pressure (psi): 300 psig
• Valve Action: Normally Closed
• Ambient Temperature Range (F): 34 F to 125 F at 200 F fluid
