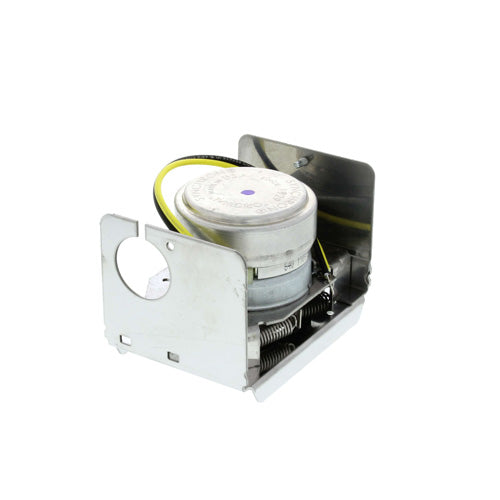

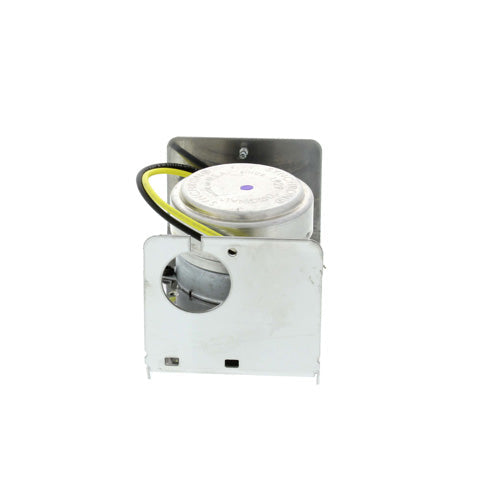

Honeywell Home VU444A1007 Two-Position Actuator 120V Valve Control for HVAC System

Product Description

The Honeywell Home VU444A1007 Actuator is designed for precise control of hot or chilled water flow in various commercial HVAC applications, including fan coil units, terminal reheat coils, and convectors. Compatible with VU52, VU53, and VU54 valve bodies, this device ensures effective handling of environmental conditions in condensing, non-corrosive setups.

• Compact and easy installation fitting most convectors.
• Includes spring return and quick-release features.
• Engineered with a manual lever for emergency operations.

Product Highlights

Equipped with a robust stainless steel casing and a corrosion-resistant aluminum cover, the VU444A1007 ensures durability and dependable performance. It supports both line and low voltage applications and provides a fail-safe spring return operation.

Product Information

Standard Information

• Actuator Type: Valve
• Application Type: HVAC
• Fail Safe Mode: Spring Return
• Control Signal: Two Position, SPST

Technical Specifications

• Temperature Range: 34 F to 125 F ambient, 200 F fluid
• Power Consumption: 6 Watts
• Electrical Connection: 6 inch leads
• Maximum Pressure Ratings: Varies with Cv rating of valve
• Dimensions: Height 2-3/8 inches, Width 3-1/2 inches
