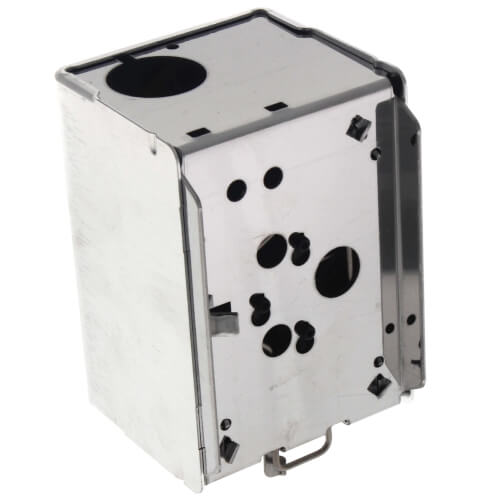

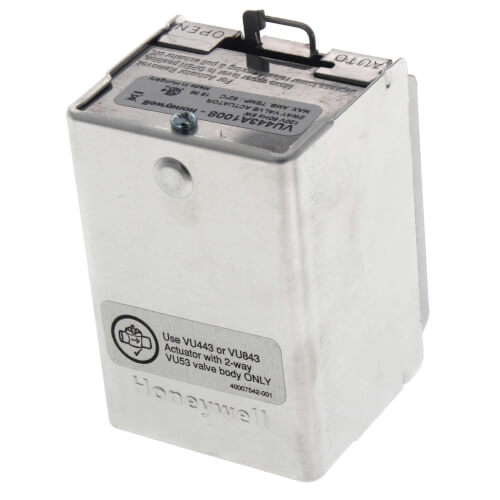

Honeywell Home VU443A1008 Two-Position Actuator for VU53 N.C. Valve Bodies 120V 60Hz

Product Description

Designed for HVAC professionals, the Honeywell Home VU443A1008 is a two-position actuator tailored for VU53 N.C. valve bodies, notable for its operation on 120V 60Hz power setups. This device efficiently controls the flow of hot or chilled water in commercial heating, ventilation, and air conditioning systems, including fan coil units, terminal reheat coils, and convectors.

• Humidity resistant, ideal for non-corrosive environments.
• Compact design allows installation under most baseboard convectors.
• Includes a manual override and easy installation features ensuring minimal downtime.

Product Highlights

This actuator is engineered for reliability in commercial buildings, supporting both line and low voltage applications. Its fail safe mode includes a spring return mechanism that operates reliably, with a fast spring return timing of approximately four seconds.

Product Information

Standard Information

• Compatibility: Works with 2-way NC VU valve bodies.
• Operation: Two-position control with SPST signaling.

Technical Specifications

• Temperature Tolerance: Operates between 34°F and 125°F ambient, handling fluid temperatures up to 200°F.
• Dimensions: Height: 2.375 inches, Width: 3.5 inches, Length: 2.375 inches.
• Power: Consumes 6 Watts.

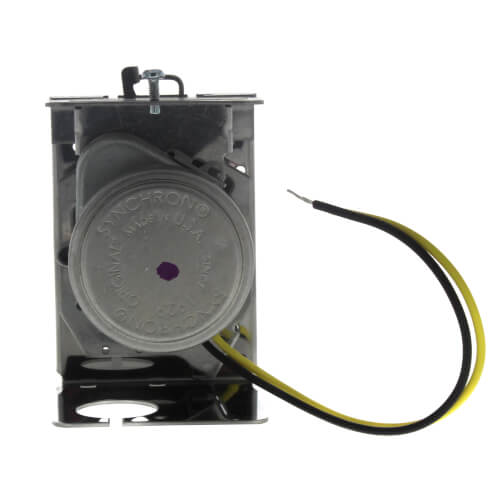

• Electrical Connection: Comes with leads for easy electrical connections.
