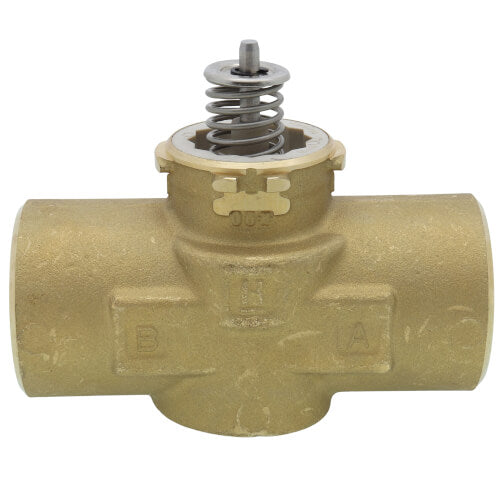

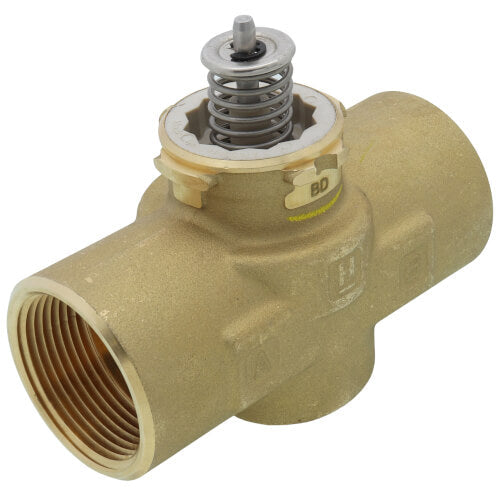

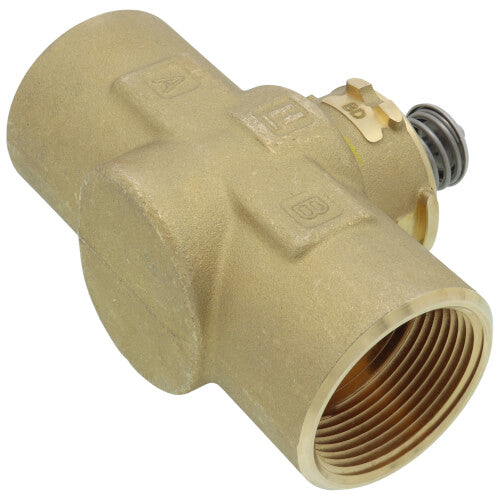

Honeywell Home VCZBD1100 2-Way VC Valve Assembly 1-1/4 Inch Female NPT 7 Cv

Product Description

The Honeywell Home VCZBD1100 2-Way VC Valve Assembly is designed to control the flow of hot and chilled water in hydronic systems. Ideal for heating and cooling applications, it features a 1-1/4 inch Female NPT and has a flow capacity of 7 Cv.

• Supports various control options including SPST, SPDT, floating, and proportional controls.
• Equipped with quick-change cartridges for easy maintenance without draining the system.
• Constructed for both bi-directional installation and high close-off capabilities to suit different system requirements.

Product Highlights

This valve assembly excels in performance with its linear and equal percentage flow characteristics and is adapted for non-fail safe applications. Its robust design ensures reliability and extends service intervals, making it suitable for intensive use in commercial environments.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: VCZBD1100

Technical Specifications

• Connection Type: Threaded
• Size: 1-1/4 inches
• Flow Capacity (Cv): 7
• Body Pattern: Straight-Through, 2-Way
• Max Pressure (PSI): 300
• Temperature Range: 34°F - 203°F
