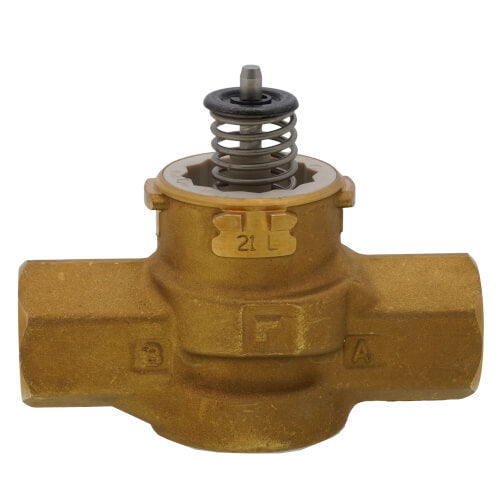

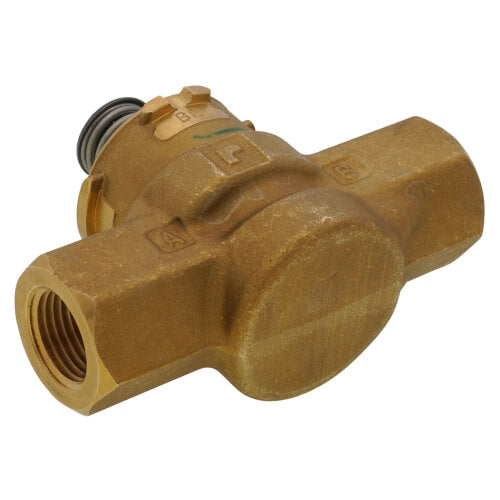

Honeywell Home VCZBB1000 1/2 Inch NPT 2-Way VC Hydronic Valve Assembly Quick Open Flow 3.5 Cv

Product Description

The Honeywell Home VCZBB1000 is a 2-way VC hydronic valve assembly designed specifically for controlled flow of hot and chilled water with up to 60% glycol concentration in heating and cooling systems. This valve is ideal for enhancing zone control in both residential and commercial environments.

• Engineered for quick opening with a flow capacity of 3.5 Cv.
• Features bi-directional installation and does not require draining the system for actuator replacement.
• Supports floating and modulating applications with a variety of pipe fittings.

Product Highlights

Constructed for reliability, the valve facilitates easy maintenance by allowing cartridge replacements, effectively restoring it to factory-new condition without the need to replace the whole valve body.

Product Information

Standard Information

• Brand: Honeywell Home
• Model: VCZBB1000

Technical Specifications

• Connection Type: Threaded
• Controlled Fluid: Water with up to 60% Glycol
• Body Pattern: 2-way, straight-through
• Valve Action: Stem up to close Port A
• Maximum Differential Pressure: 60 psi
• Flow Capacity (Cv): 3.9
• Maximum Pressure: 300 psi
• Ambient Temperature Range: 32 to 150 F
• Fluid Temperature Range: 34 F to 203 F
