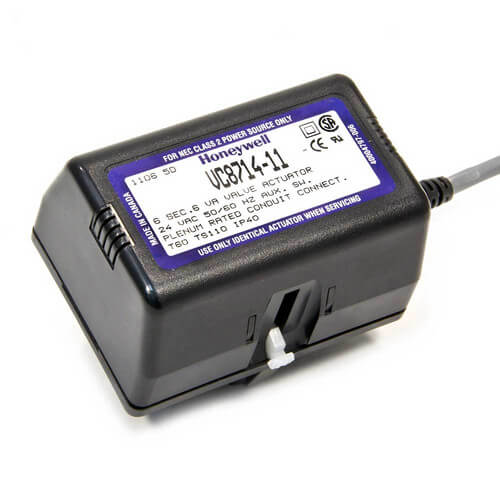

Resideo VC8714ZZ11 Two Position Low Volt Actuator for VC Series Valves w/ End Switch

Product Description

The Resideo VC8714ZZ11 is a two-position low voltage actuator designed for VC Series valves. It controls heating and cooling systems effectively. This actuator features a six-second timing function for efficient operation.

• Use with two-way or three-way valves
• 24V voltage compatibility

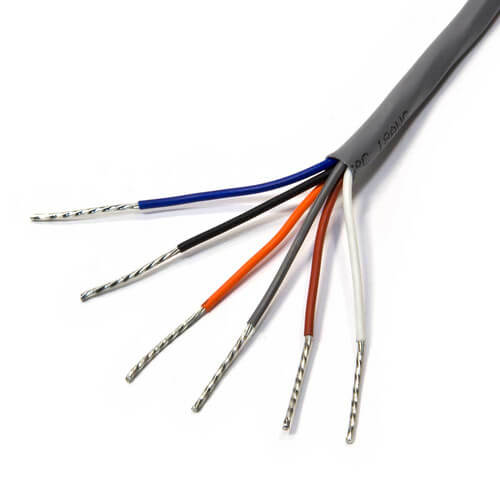

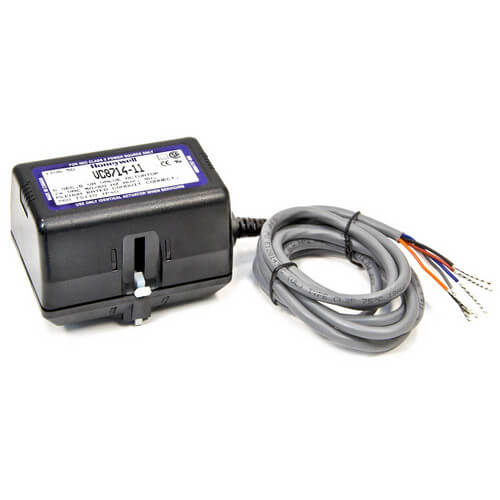

• Quick-connect or one meter cable electrical connections available

Product Highlights

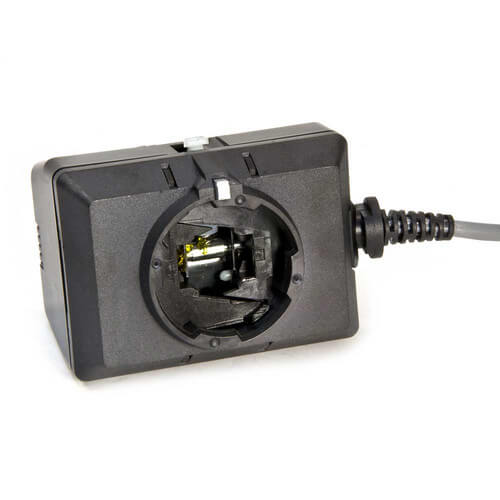

This actuator provides minimal power consumption and enables quick replacement of moving parts. The actuator head can be installed without draining the system.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: VC8714ZZ11
• Part ID: 92115

Technical Specifications

• Voltage: 24V
• Position: Normally Closed
• Timing: 120 Seconds
• Control Signal: SPST, Two Position
• Fail Safe Mode: Non-Spring Return
• Temperature Range: 32°F to 150°F
• Weight: 0.98 pounds
• Dimensions: 4.7 inches length, 6 inches width, 3.45 inches height
