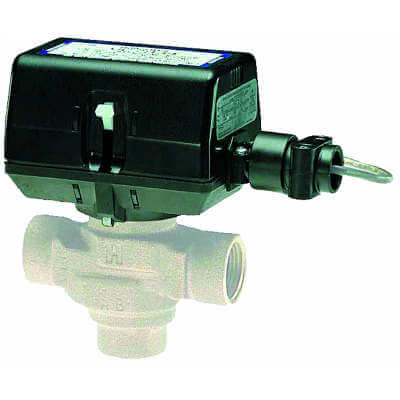

Honeywell Home VC8114ZZ31 2-Position Low Volt Actuator for VC Series Valves

Product Description

The Honeywell Home VC8114ZZ31 Actuator is specifically engineered for effective control of heating and cooling fan coil systems, such as radiators and convectors. This unit operates with either a low voltage SPST or SPDT switch, pulse-width modulated 24 Volt AC signal, or a floating input from a modulating controller.

• Compatible with both two-way and three-way valve configurations.
• Features a double insulated design and a five-foot plenum-rated cable.
• Allows for easy replacement without the need to drain the system.

Product Highlights

Equipped with a selectable electronic fail safe, the actuator ensures reliable performance by being able to switch between normally open or normally closed positions. Ideal for use in new construction, it works seamlessly with 1000-series 2-way and 6000-series 3-way cartridges. Provides up to 60 psi close-off pressure.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: VC8114ZZ31

Technical Specifications

• Control Signal: SPST
• Supply Voltage: 24 VAC
• Maximum Differential: 60 psi
• Close Off Pressure: 60 psi
• Ambient Temperature Range: 32° to 150°F
