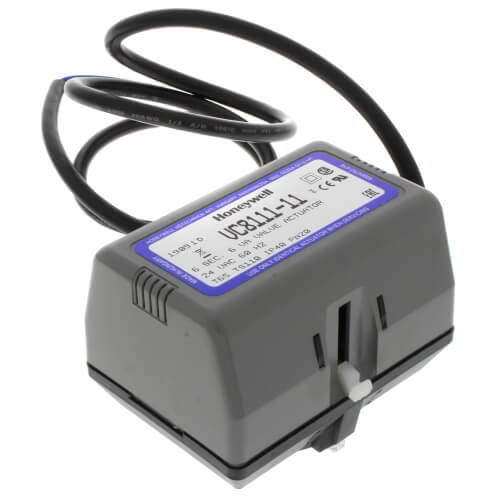

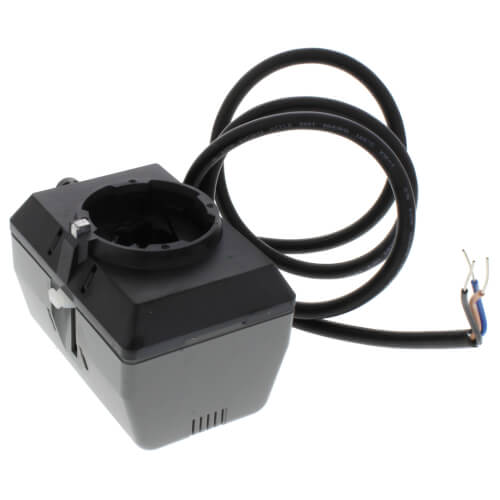

Honeywell Home VC8111ZZ11 Two Position Low Volt Actuator for VC Series Valves

Product Description

The Honeywell Home VC8111ZZ11 is a two-position low volt actuator designed specifically for VC series valves, ideal for optimizing HVAC systems such as central heating, cooling, fan coils, radiators, and convectors. It's engineered to work with two-way or three-way valves, providing versatility in application.

• Compatible with low voltage SPST or SPDT switches.
• Includes a five-foot plenum-rated cable for easy installation.
• Features selectable and switchable electronic fail-safe, normally open or closed.

Product Highlights

This actuator offers efficient control with options for either SPST or SPDT switches, supporting pulse-width modulated 24 VAC signals or floating inputs via a modulating controller. Its robust design includes a double-insulated construction, ensuring durability and safety in various HVAC setups.

Product Information

Standard Information

• Actuator Type: Two Position
• Control Signal: SPST
• Supply Voltage: 24 VAC
• Material: Plastic
• Position: Normally Closed
• Frequency: 60 Hz

Technical Specifications

• Max Differential: 60 psi
• Close Off Pressure: 60 psi
• Medium Temperature: up to 203 degrees Fahrenheit
• Ambient Temperature Range: 32 to 150 degrees Fahrenheit
• Electric Connection: Plenum-Rated Cable
• Storage Temperature: -40 to 150 degrees Fahrenheit
