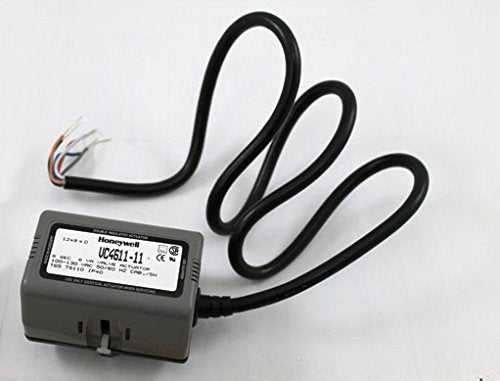

Honeywell Home VC4611ZZ11 Valve Actuator 120V 50/60 Hz

Product Description

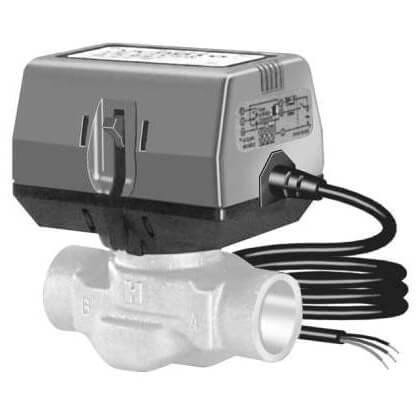

The Honeywell Home VC4611ZZ11 is a valve actuator designed for controlling heating and cooling systems, including fan coils, radiators, and convectors. This product operates effectively with both two-way and three-way valves, ensuring efficient system performance.

• Direct coupling mounting for secure installation
• Features a two-position control signal with SPST configuration
• Equipped with an internal auxiliary switch and manual operation lever

Product Highlights

Utilize minimal power with a consumption rate of six VA. Ensure swift and straightforward part replacement and system maintenance without the need for draining.

Product Information

Technical Specifications

• Supply Voltage: 120V
• Power Consumption: 6 VA
• Humidity Range: 5 to 95% RH, non-condensing
• Temperature Range: Operating at 32 F to 150 F, storage at -40 F to +150 F
• Switch Ratings: 2.2A (5 to 110 Vac) / 1.0A (110 to 277 Vac)
• Fluid Temperature: Up to 203 F
• Close-off Pressure: 60 psi
• Connection Type: Cable
