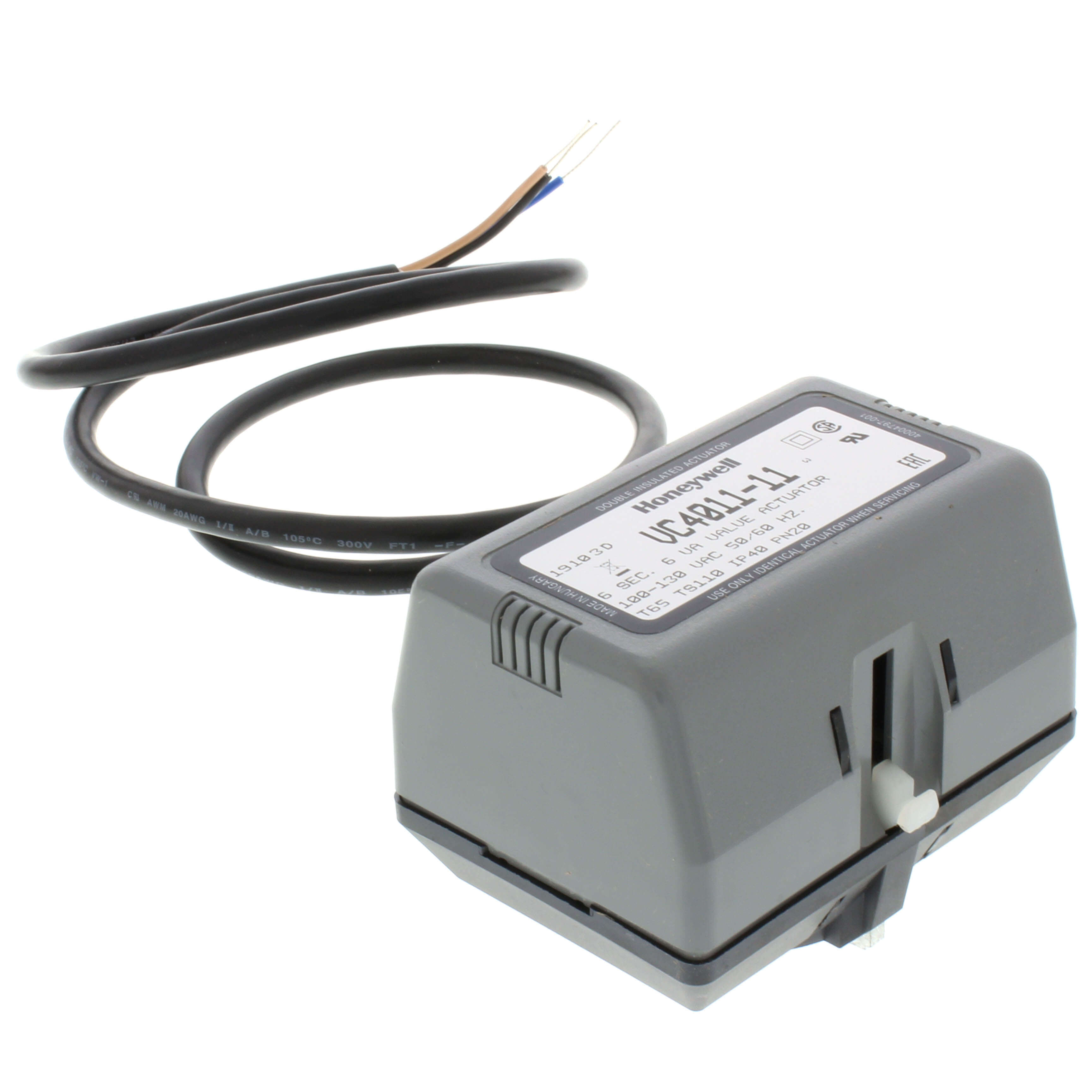

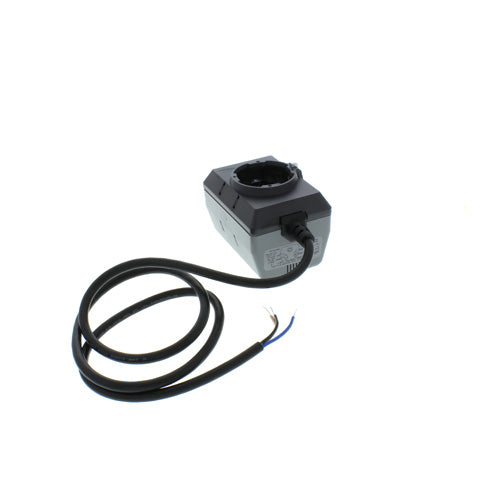

Honeywell Home VC4011ZZ11 Two Position Line Volt Actuator for HVAC Applications

Product Description

The Honeywell Home VC4011ZZ11 is a two-position, line volt actuator designed specifically for VC Series valves. Ideal for controlling central heating and cooling systems, this actuator can be integrated with fan coil systems, radiators, and convectors.

• Compatible with two-way or three-way VC Series valves.
• Features low power consumption and offers quick-connect or one meter cable electrical connections.
• Designed for easy maintenance and part replacement without system drainage.

Product Highlights

This actuator is highly efficient in both installation and operation, ensuring minimal downtime and maximum performance. Key features include a six-second nominal timing for on/off control and a robust 60 psi close-off capability.

Product Information

Standard Information

• MPN: VC4011ZZ11
• Brand: Honeywell Home

Technical Specifications

• Actuator Type: Two Position Line Voltage
• Control Signal: SPST
• Supply Voltage: 100 to 130V
• Operating Temperature: 32F to 150F
• Dimensions: 2.8 inches high x 3.7 inches wide x 2.7 inches deep
• Power Consumption: 6 VA
• Connection: Cable with Molded Strain Relief
• Mounting: Direct Coupled
