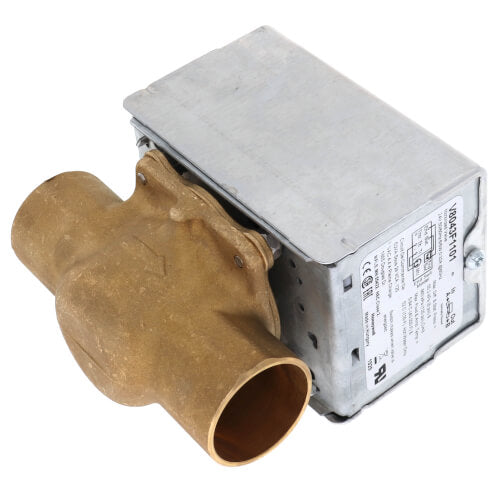

Honeywell Home V8043F1101 Zone Valve 24V 1 Inch Sweat Connection Normally Closed

Product Description

The Honeywell Home V8043F1101 Zone Valve is a robust solution for controlling the flow in hydronic heating systems. This valve, designed for use in closed loop systems free of dissolved oxygen, ensures efficient operation and reliable performance.

• 24V operation with a 1-inch sweat connection.
• Normally closed position with manual override feature.

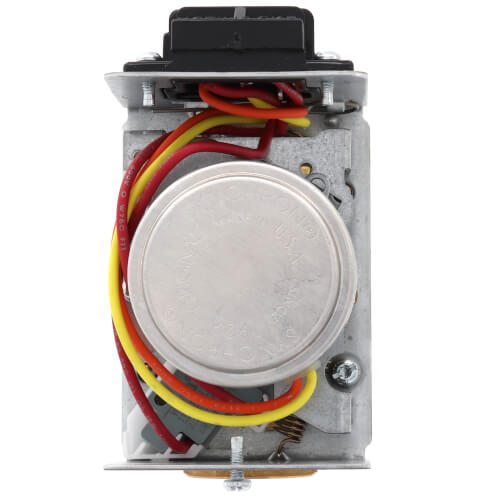

• Robust spring return mechanism ensuring reliable operation.

Product Highlights

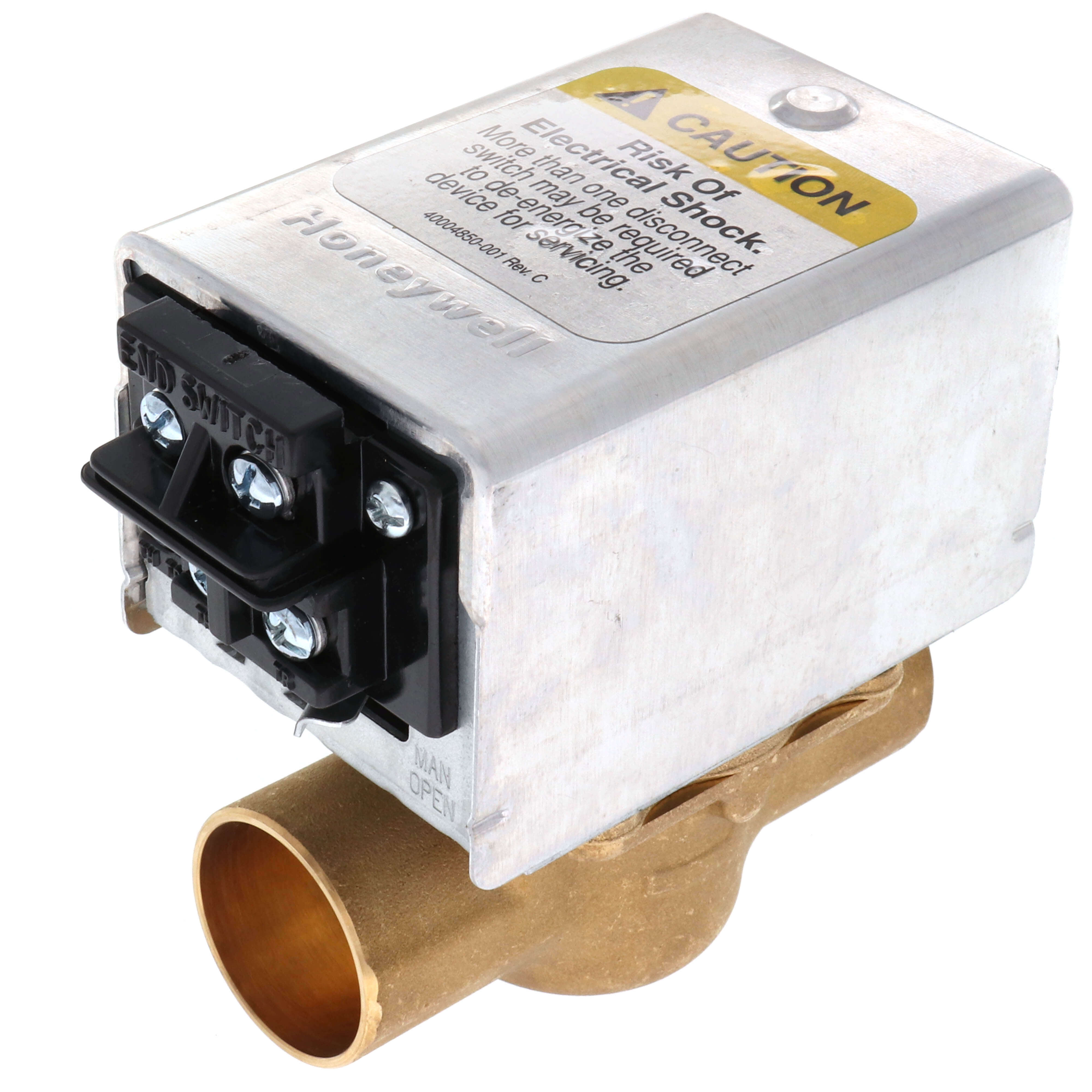

Equipped with a screw terminal block for easy electrical connections, this valve operates with minimal power consumption and can handle fluid temperatures up to 200 degrees Fahrenheit. Its compact design allows for easy installation without the need for system drainage or disassembly.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V8043F1101

Technical Specifications

• Connection Type: Sweat
• Body Pattern: Two-way, straight-through
• Capacity (Cv): 8
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure: 8 psi
• Power Consumption: 7.7 VA
• Manual Opener: Yes
• Auxiliary End Switch: Yes, SPST
