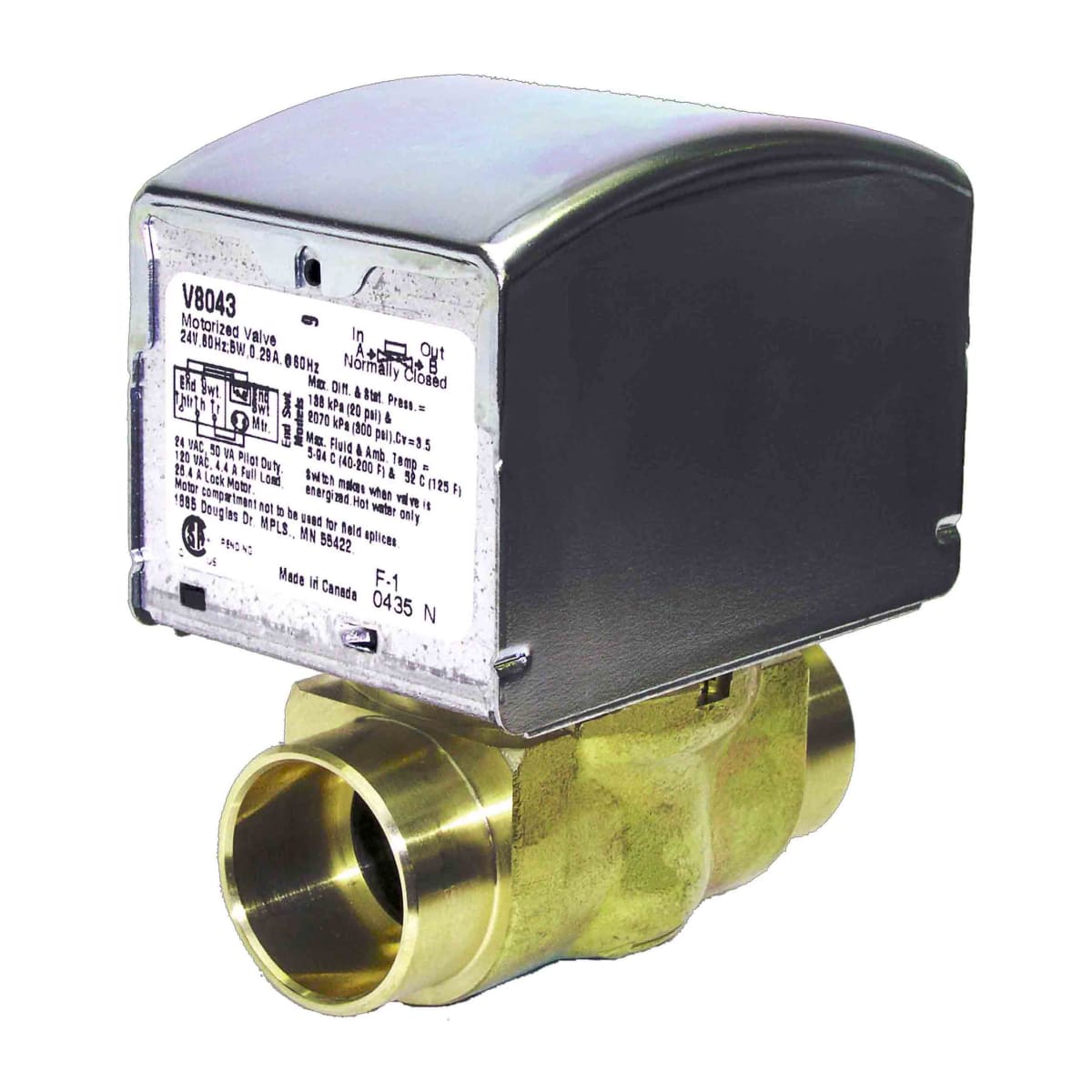

Resideo V8043E5079/U 24 Vac 1 in Sweat N.C. QuickFit Zone Valve with 18 in lead wires

Product Description

The Resideo V8043E5079/U is a zone valve designed for hydronic control in heating systems. It operates at a power supply of twenty-four volts and can handle an operating pressure of up to three hundred psi. This product features a motorized actuator that precisely manages the flow of hot water to a heat exchanger, ensuring efficient temperature regulation. The zone valve includes a QuickFit pushbutton powerhead which simplifies servicing and maintenance procedures.

• Voltage: 24 Vac
• Connection Type: Sweat
• Includes End switch enclosure and Manual Opener

Product Highlights

This valve is suitable for both heating and cooling systems and is CSA certified. It operates efficiently in a range of humidity conditions, from five to ninety-five percent non-condensing.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8043E5079/U

Technical Specifications

• Operating Pressure: Up to 300 psi
• Power Loss Action: Valve Closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Operating Relative Humidity: 5% to 95% Non-condensing
• Certification: CSA Certified - File 1322
• Application: Hydronic Control
• Compatible With: Heating and cooling systems
• Warranty: 1 Year
