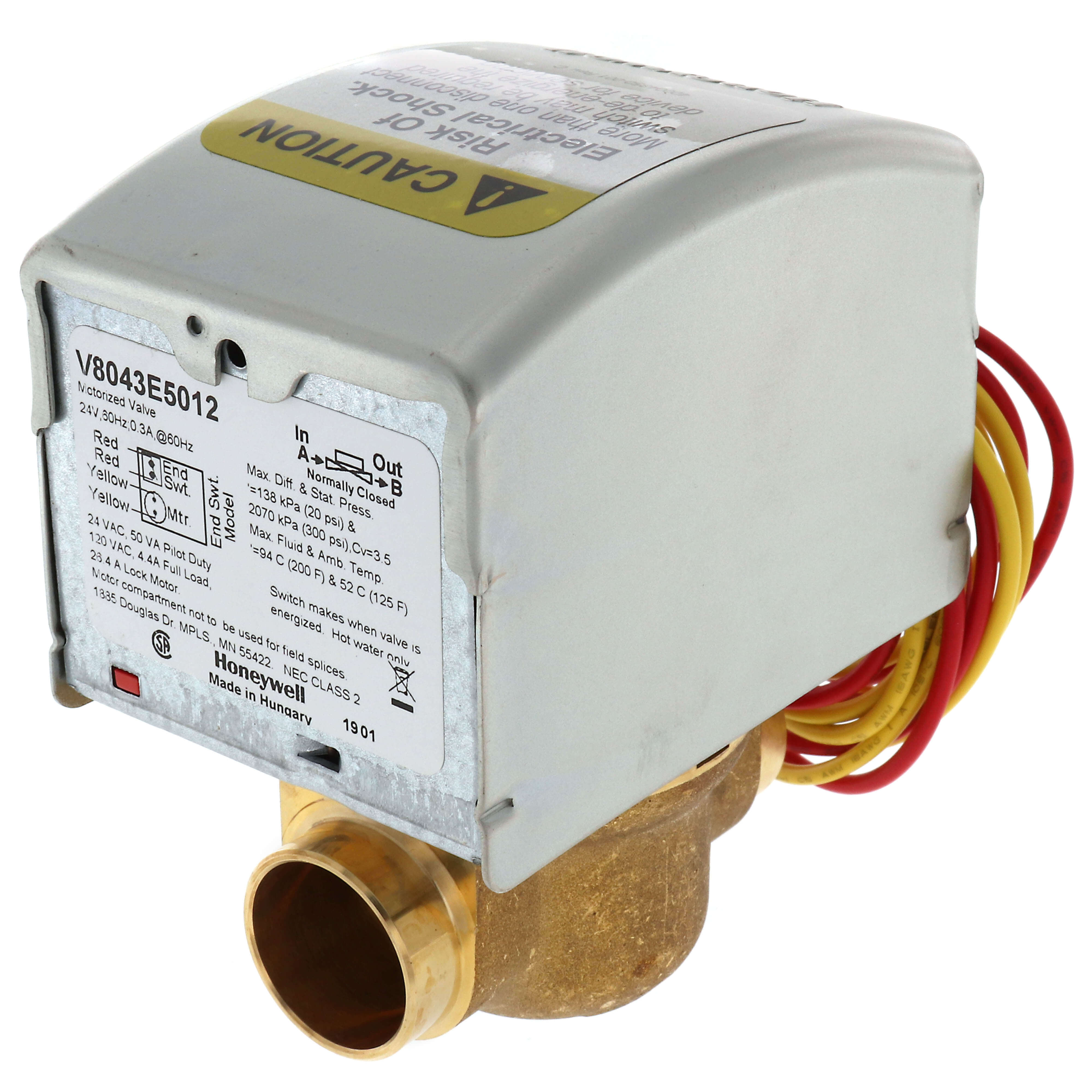

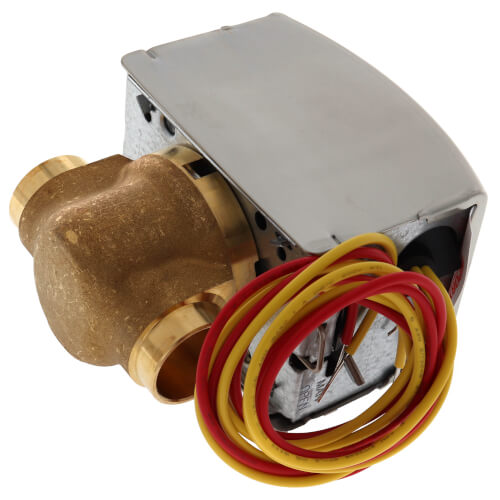

Honeywell Home V8043E5012 2-Way 18 inch Lead Zone Valve 24V

Product Description

The Honeywell Home V8043E5012 is a robust 2-way sweat connection zone valve designed for optimizing hydronic heating system performance. This low voltage motorized valve ensures reliable control of hot water flow in closed loop systems.

• Effortless installation with compact size and 'Quick Fit' pushbutton powerhead.
• Manual opener for operation during power outages, with automatic reset once power is restored.
• Compatible with systems up to 200 degrees Fahrenheit, featuring silent motor technology that resists water hammer and extends operational life.

Product Highlights

The valve supports 3/4 inch sweat connections and includes advanced features such as a spring return mechanism and an SPST end switch for enhanced functionality.

Product Information

Standard Information

• Connection Type: Sweat
• Fluid Temperature Range: 40 to 200 degrees Fahrenheit

Technical Specifications

• Body Pattern: Two-way, Straight-through
• Capacity: 3.5 Cv
• Power Consumption: 7.2 VA
• Valve Action: Spring return to close
• Dimensions: 4-3/8 inches high x 3-1/2 inches wide x 2-3/8 inches deep
• Static Pressure: 300 psi
• Voltage: 24V
• Frequency: 60 Hz
