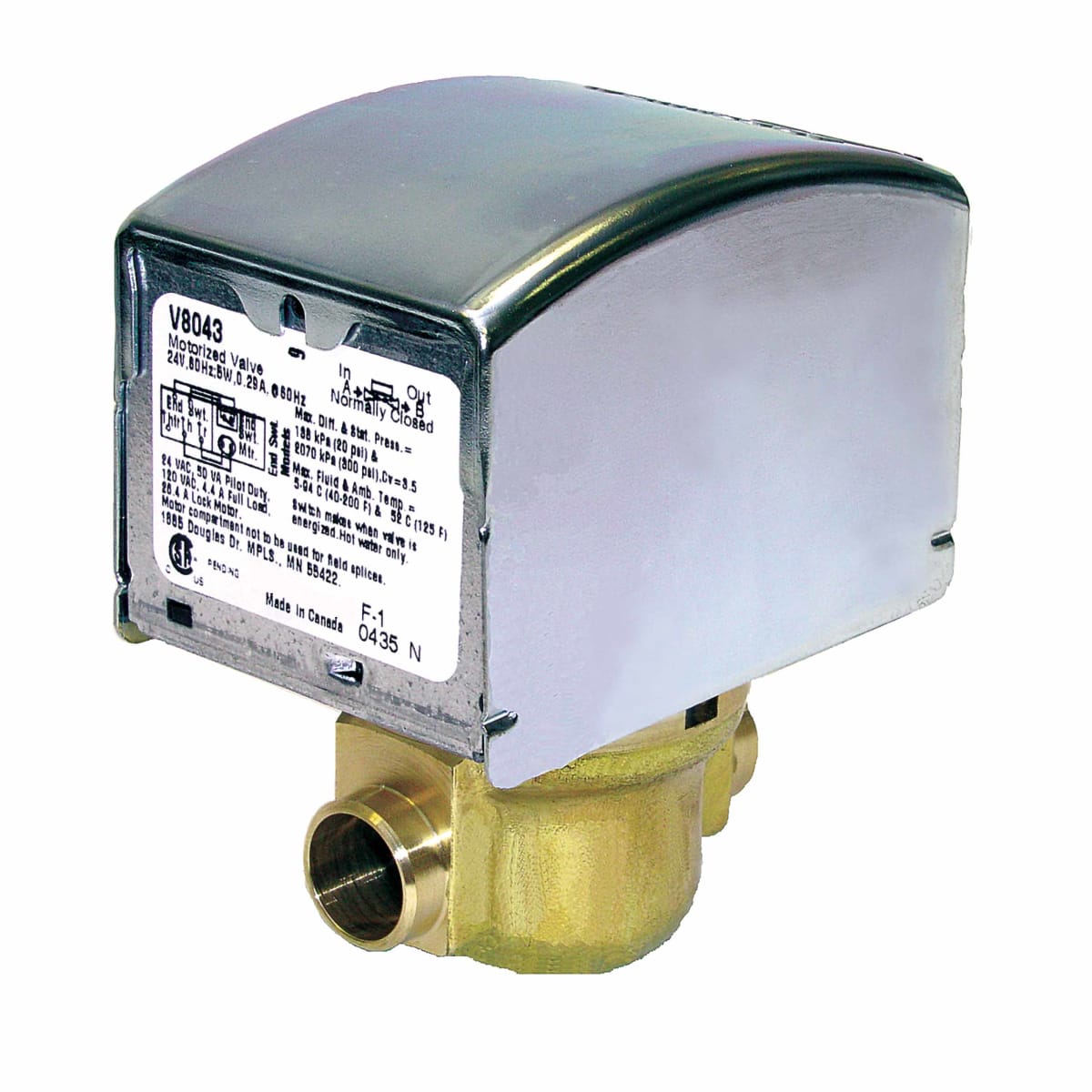

Resideo V8043E5004/U 24 Vac 1/2 in Sweat N.C. QuickFit Zone Valve with 18 in lead wires

Product Description

The Resideo V8043E5004/U is a low voltage normally closed zone valve designed for hydronic control applications. This valve operates on 24 volts and is suitable for use with heating and cooling systems. It allows for two-position control of supply water, ensuring efficient operation in heating applications.

• Operates at up to 300 psi
• Includes manual opener for operation during power failures
• QuickFit powerhead design allows for easy removal and service

Product Highlights

This zone valve features a motorized actuator, providing precise control over hot water flow to heat exchangers. Its innovative motor technology reduces noise and prevents water hammer, ensuring a longer lifespan.

Product Information

Standard Information

• Brand: Resideo
• Part Number: V8043E5004/U

Technical Specifications

• Color: Brass
• Includes: End switch enclosure, Manual opener
• Warranty: 1 Year
• Application: Hydronic control
• Compatible With: Heating and cooling systems
• Connection Type: Sweat
• Power Loss Action: Valve closed
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: CSA Certified: File 1322
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
