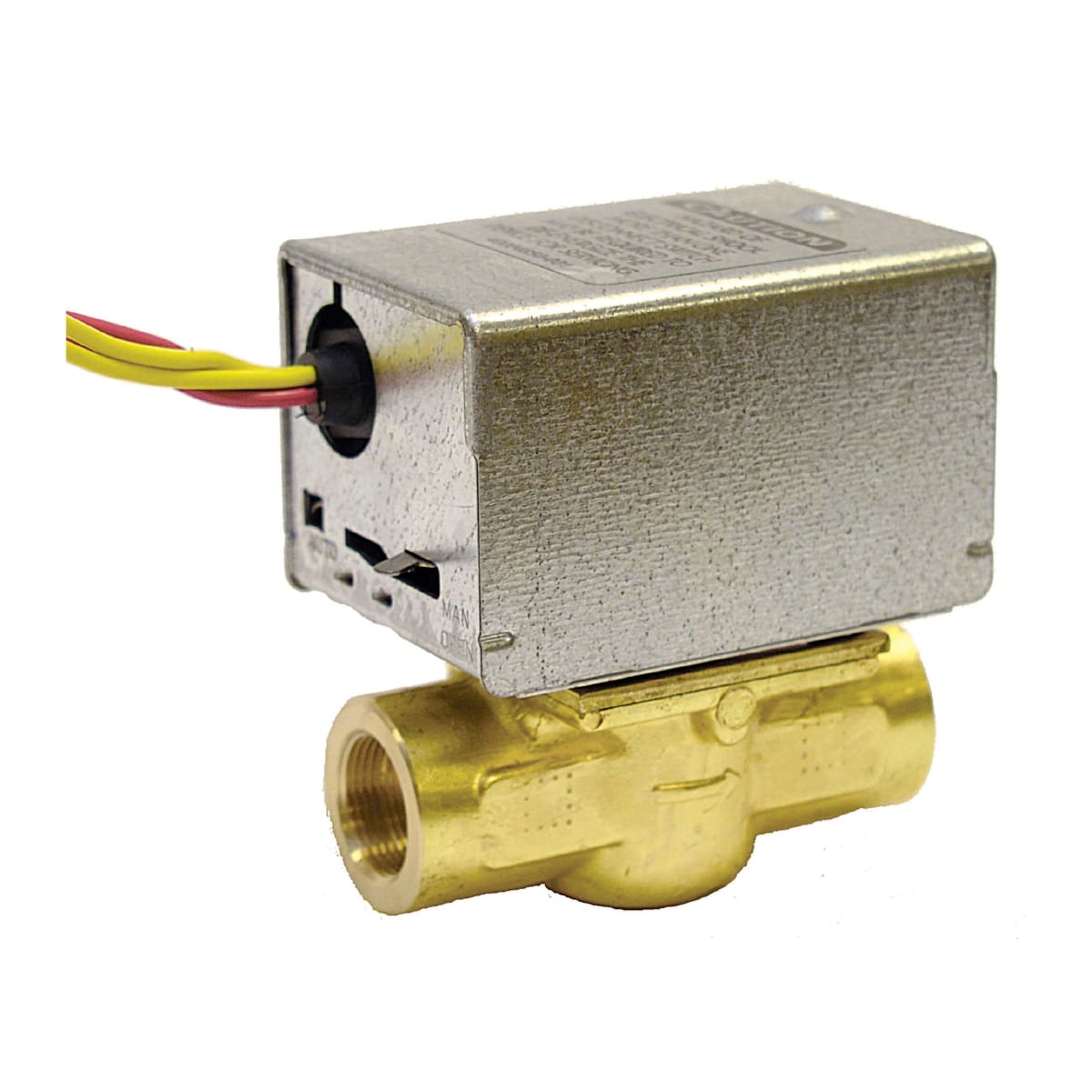

Resideo V8043E1129/U 24 Vac 1/2 in Invert-Flare N.C. QuickFit Zone Valve with 18 in lead wires

Product Description

The Resideo V8043E1129/U is a low voltage normally closed zone valve designed to manage the flow of hot water in heating systems. This valve operates under 24 VAC and can withstand an operating pressure up to three hundred psi. It features a motorized actuator that allows for precise control of supply water. The unit can be easily installed without the need to disassemble the valve.

• Designed for hydronic control
• Compatible with heating and cooling systems
• Manual opener included for convenience

Product Highlights

Efficiently controls the flow of water to heat exchangers.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043E1129/U

Technical Specifications

• Application: Hydronic Control
• Connection Type: Flare
• Valve Ball Material: Buna-N (NBR) Rubber
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Power Loss Action: Valve Closed
• Warranty: 1 Year
• Approvals and Standards: UL Listed: File MH11826
• Includes: End switch enclosure, Manual Opener
