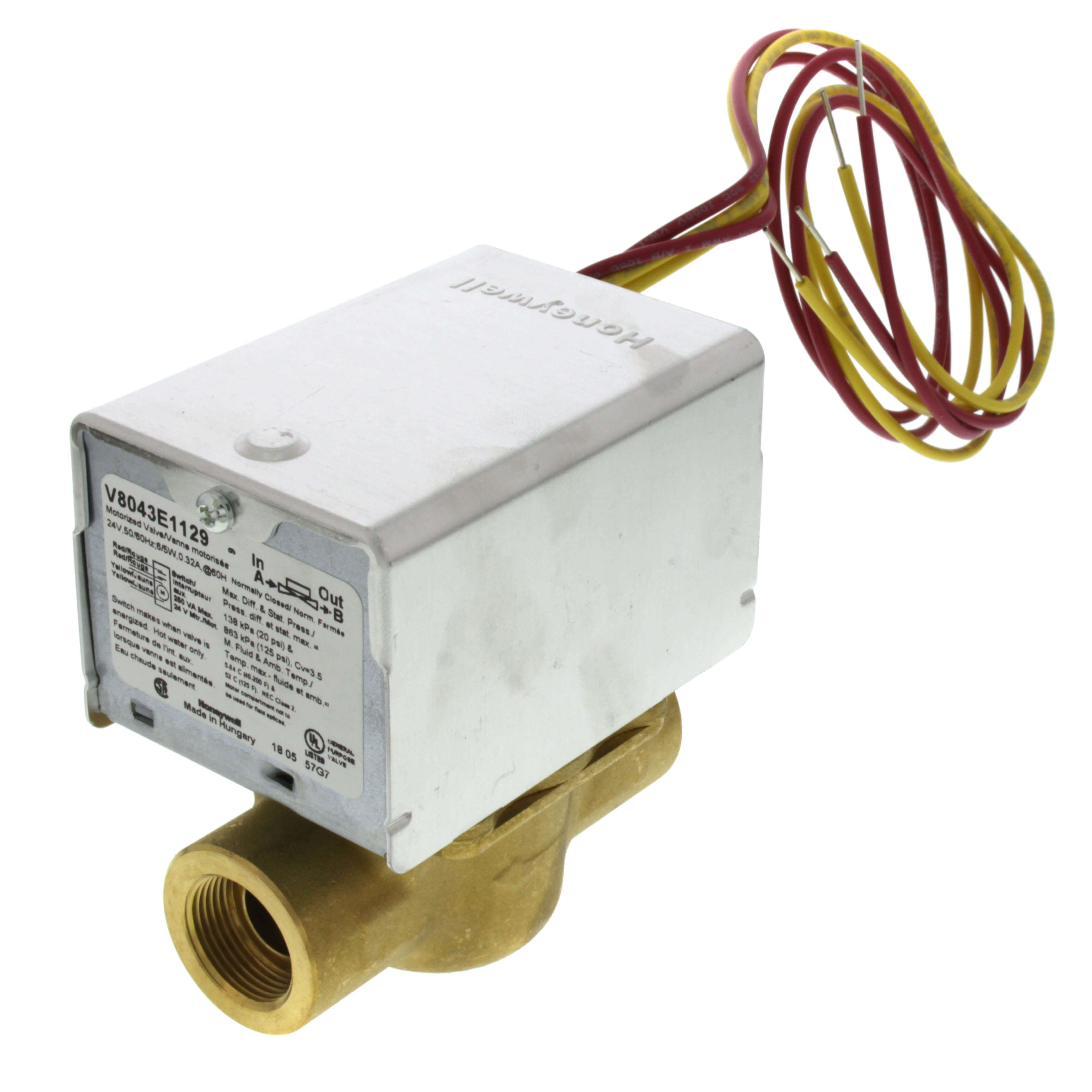

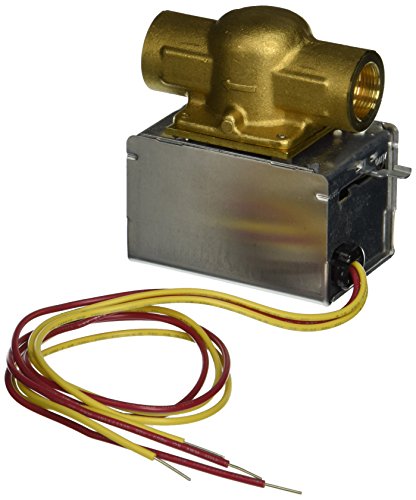

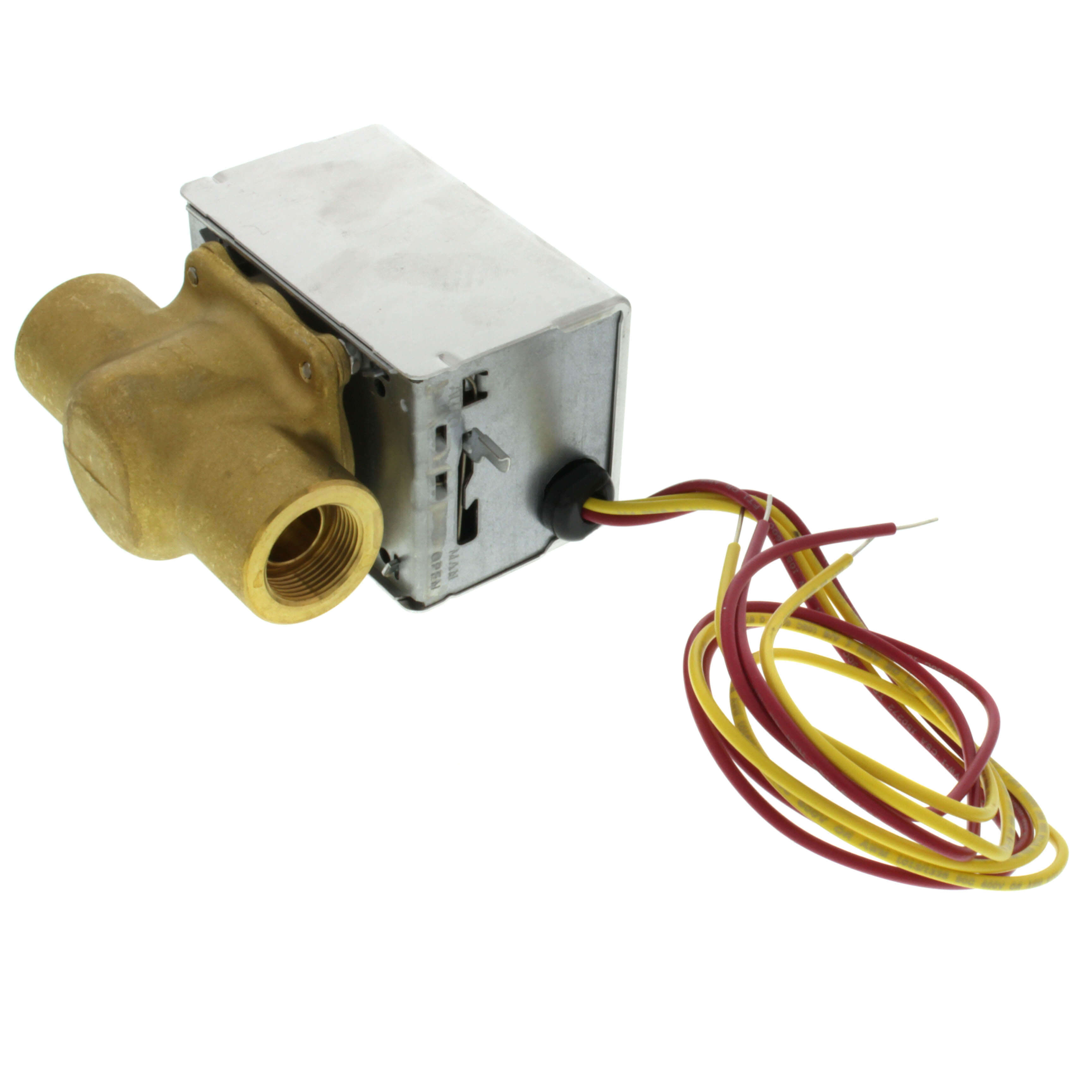

Honeywell Home V8043E1129 2-Way 18 inch Lead Zone Valve 24V

Product Description

The Honeywell Home V8043E1129 2-Way Zone Valve is designed to control the flow of hot water in HVAC systems efficiently. This 24V motorized valve, fitted with an inverted flare, ensures reliable operation and comes with an easy manual override feature.

• Manual opener for valve operation during power failures, returning to automatic when power restores.
• Install without disassembling or system drainage.
• Motor replacement does not require system drainage or valve body removal.

Product Highlights

Equipped with a spring return to close, this zone valve highlights its low voltage requirements and simple installation, making it ideal for any heating supplies and parts needs.

Product Information

Standard Information

• Connection type: Inverted Flare
• Size: 1/2 inch
• Body Pattern: Two-way, straight-through

Technical Specifications

• Voltage: 24V
• Flow Capacity: 3.5 Cv
• Max. Water Temp: 200°F
• Dimensions: 4 in. high x 3 5/8 in. wide x 2 3/8 in. deep
• Max Close-off PSI: 20 psi
