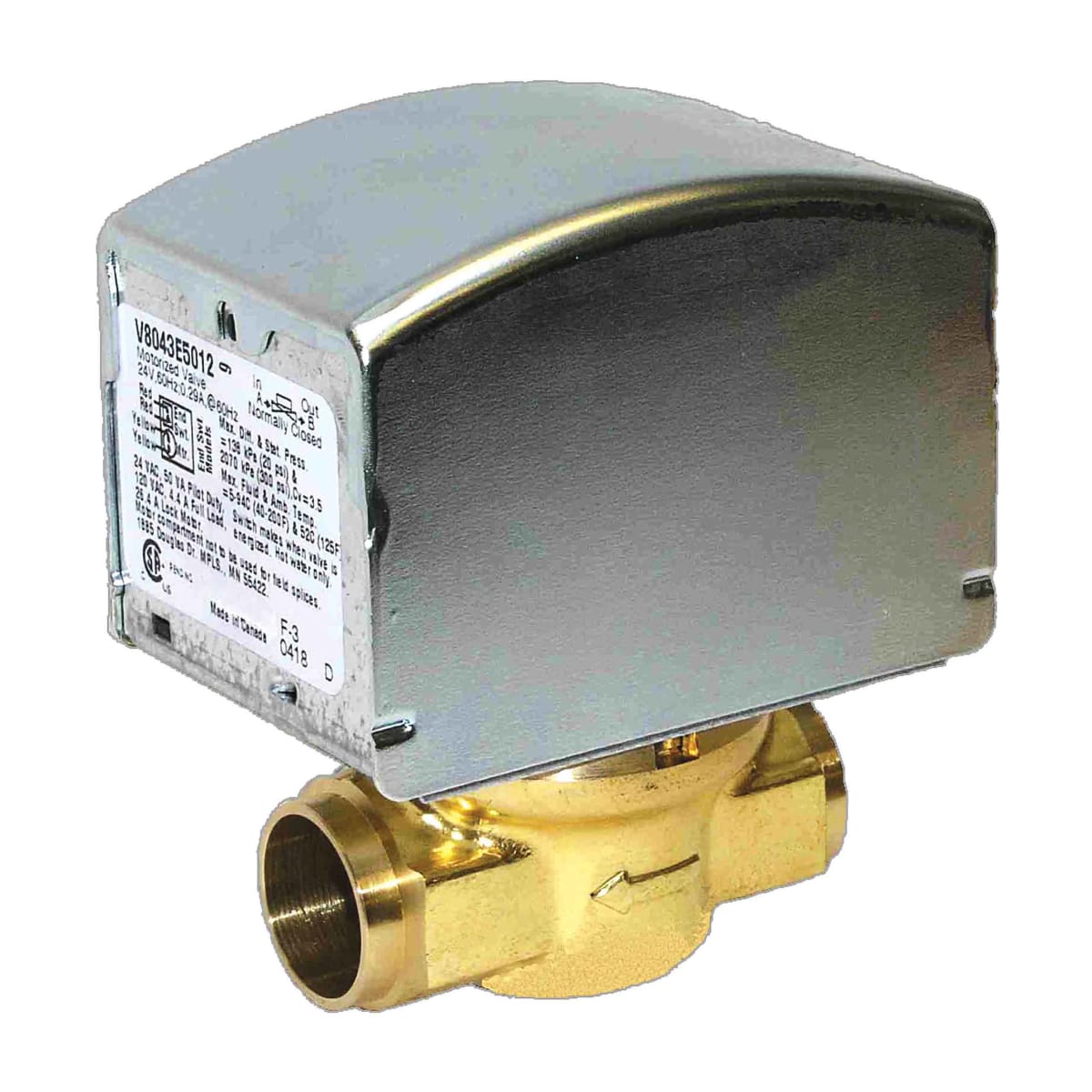

Resideo V8043A5029/U 24 Vac 3/4 in Sweat N.C. QuickFit® Zone Valve

Product Description

The Resideo V8043A5029/U is a 24 Vac 3/4 inch Sweat Normally Closed QuickFit® Zone Valve designed for hydronic control systems. This valve features a motorized actuator that manages the flow of hot water to heat exchangers, including radiators and in-floor radiant coils. It is engineered to provide reliable temperature control in various heating applications.

• Motorized actuator for efficient control
• Compatible with heating and cooling systems
• End switch enclosure included

Product Highlights

This valve supports straightforward installation and maintenance, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Resideo
• Part Number: HONE-V8043A5029/U

Technical Specifications

• Color: Brass
• Series: 5000 Series
• Connection Type: Sweat
• Compatible With: Heating and cooling systems
• Valve Ball Material: Buna-N (NBR) Rubber
• Operating Relative Humidity Max: 95% Non-condensing
• Operating Relative Humidity Min: 5% Non-condensing
• Approvals and Standards: CSA C/US: File 1322
