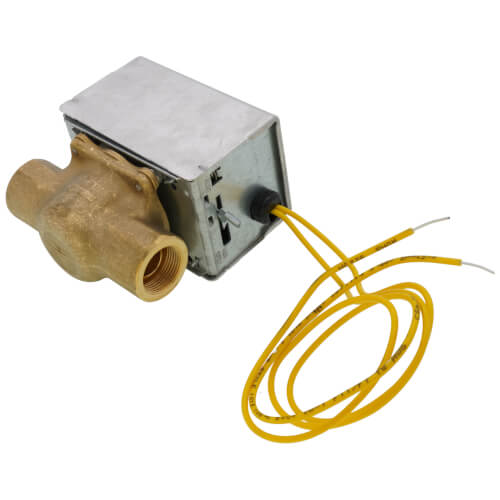

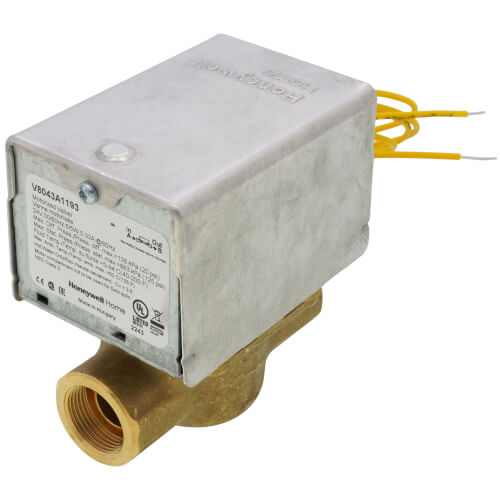

Honeywell Home V8043A1193 2-Way 18 Inch Lead Zone Valve 24V

Product Description

The Honeywell Home V8043A1193 is a 2-Way 18 inch lead zone valve designed for efficient control of hot water flow in hydronic heating systems. This valve features a 1/2 inch inverted flare connection and operates at 24 volts, making it ideal for installation in closed loop systems. Known for reliability, the V8043A1193 facilitates manual operation during power outages with automatic reset once power is restored.

• Manual opener for operation during power outages
• Can be installed without disassembling the valve

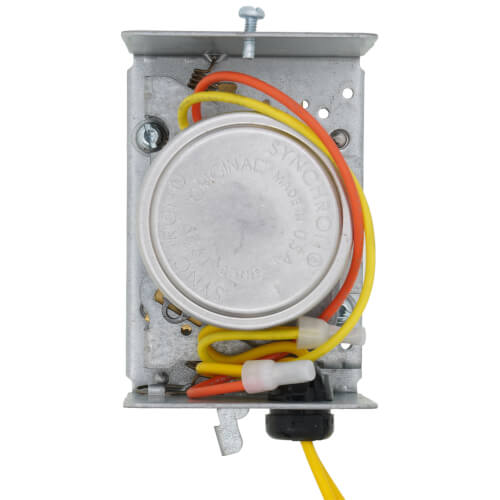

• Actuator motor can be replaced without removing the valve body

Product Highlights

This valve supports a Cv capacity of 3.5, providing a balanced flow for heating applications. Its compact size ensures easy installation in tight spaces without draining the system.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V8043A1193

Technical Specifications

• Connection Type: Inverted Flare
• Voltage: 24V
• Position: Normally Closed
• Max Close-Off PSI: 20 psi
• Flow Capacity (Cv): 3.5
• Max Ambient Temperature: 125°F
• Length: 18 inches
