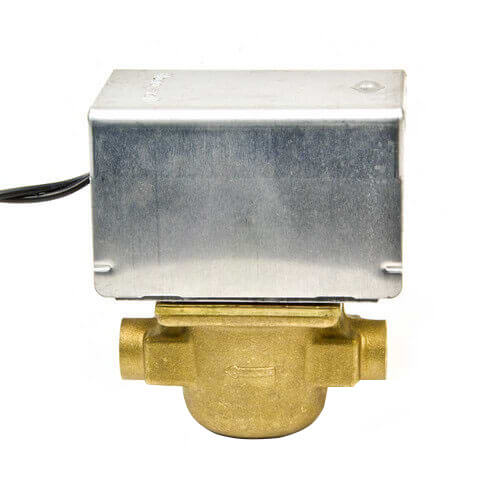

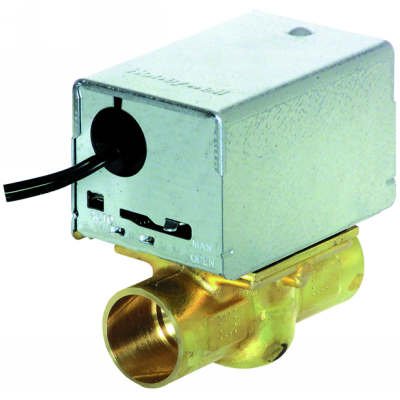

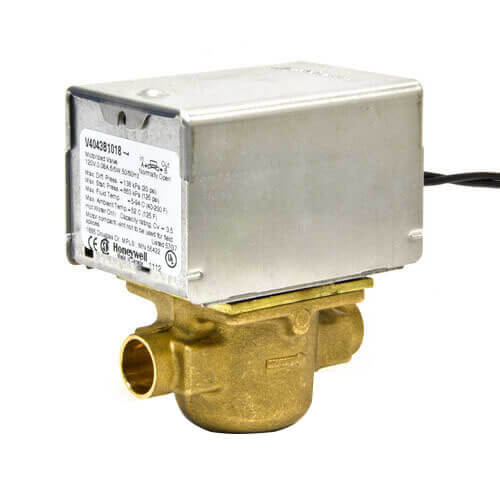

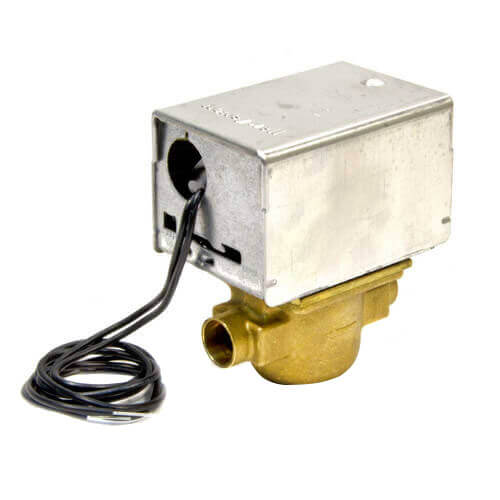

Honeywell Home V8043A1037 1 Inch Sweat Connection Zone Valve 24V Replacement Parts 40003916-021, 272742A, 40003918-006, 802360JA

Product Description

The Honeywell Home V8043A1037 Zone Valve enhances system performance and ease of use with its advanced engineering. Designed for hydronic heating systems, this valve prevents the passage of oxygen in the fluid, ensuring longevity and reliability.

• Manual operation option during power outage.
• Easy installation with removable powerhead and motor.
• Optimized for closed loop hydronic systems.

Product Highlights

This zone valve offers a seamless integration into existing setups without the need to drain the system. Its compact design minimizes space usage while providing robust control over water flow.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V8043A1037

Technical Specifications

• Connection Type: Sweat
• Pipe Size: One inch
• Body Pattern: Two-way, Straight-through
• Capacity: 3.5 Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure: 20 psi
• Fluid Temperature Range: 50°F to 200°F
• Electrical Connections: 18 inch leads
• Power Consumption: 7.7 VA
• Nominal Timing: 15 Seconds
• Valve Action: Spring return to close
• Maximum Ambient Temperature: 125°F
• Voltage: 24V
• Frequency: 60, 50 Hz
