Honeywell Home V4043A1689 1/2 NPT Connection Zone Valve 120V

Product Description

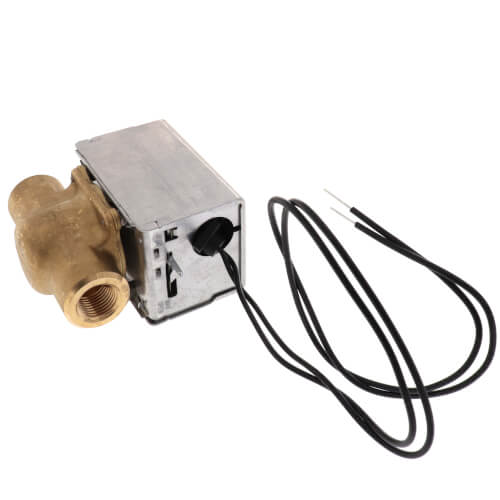

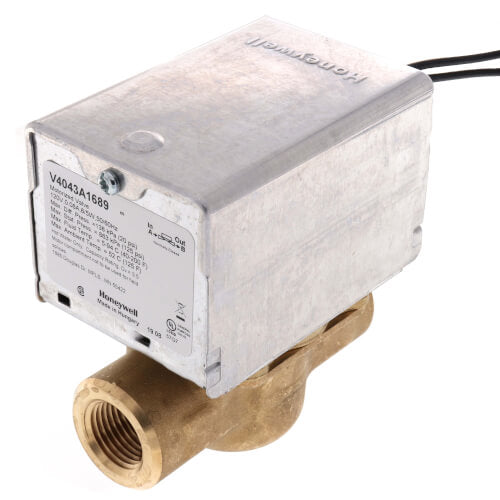

The Honeywell Home V4043A1689 is a robust 2-way, 1/2 NPT connection zone valve designed for regulating the flow of hot or chilled water in hydronic heating and cooling systems. This valve is well-suited for closed loop systems free from dissolved oxygen.

• Manual opener ensures operation during power outages, with automatic reset.
• Designed for easy installation without needing to disassemble the valve or drain the system.

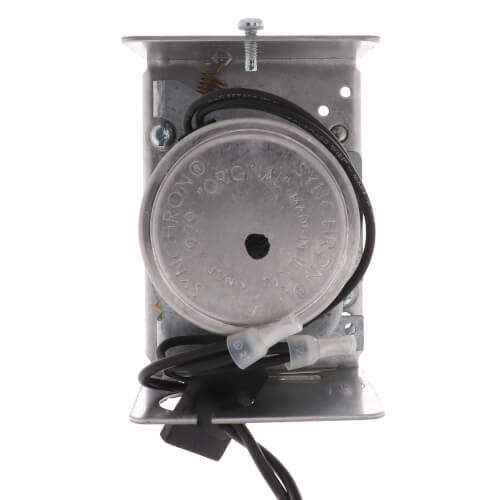

• Durable construction and replaceable motor for prolonged valve life.

Product Highlights

This zone valve comes with a spring return to close mechanism and operates at 120 volts, suitable for residential and commercial applications. Its compact design allows for installation in tight spaces, enhancing its utility in diverse setups.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V4043A1689
• Type: Zone Valve
• Connection Type: Threaded

Technical Specifications

• Size: 1/2 inch NPT
• Voltage: 120VAC
• Max Close-Off Pressure: 20 psi
• Fluid Temperature Range: 40 to 200 degrees Fahrenheit
• Electrical Connections: 18 inch leads
• Power Consumption: 9.6 VA
• Nominal Timing: 15 Seconds
• Position: Normally Closed
