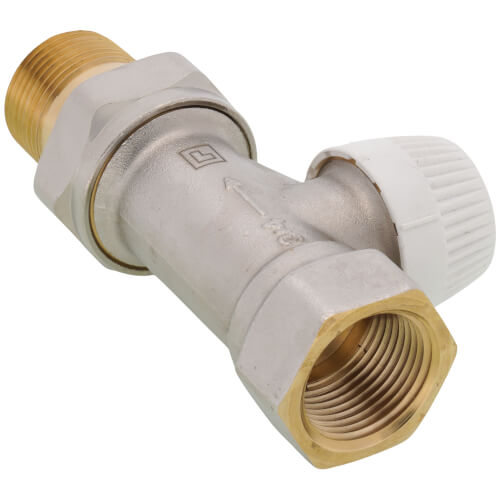

Honeywell Home V2040DSL20 3/4 Inch Horizontal Radiator Valve Standard Capacity V200LDSL20

Product Description

Honeywell Home V2040DSL20 provides automatic temperature control for one-pipe steam or hot water heating systems, enhancing comfort while maximizing energy savings. The design integrates a radiator valve and steam air vent with a nickel-plated brass body for robust performance.

• Adjusts temperature automatically to eliminate under-heating or overheating.
• Features a replaceable EPDM cartridge, ensuring tight shut-off and easy maintenance.
• No electric connection required, operating effectively with non-electric actuators.

Product Highlights

This thermostatic radiator valve is ideal for use in free-standing radiators, convectors, and other heating units with standard capacity needs. It supports manual and capillary actuators and is specifically tailored for horizontal installation on baseboards and straight run radiators.

Product Information

Technical Specifications

• MPN: V2040DSL20
• Brand: Honeywell Home
• Body Pattern: Straight
• Pipe Size: 3/4 inch
• Connection Type: Threaded (NPT)
• Materials: Nickel Plated Brass
• Temperature Rating: Up to 248 degrees Fahrenheit
• Pressure Ratings: Hot Water, 150 psi; Steam, 15 psi; Differential, up to 36 psi
• Dimensions: 4.06 x 4.19 inches
• Used With: T100 actuators
