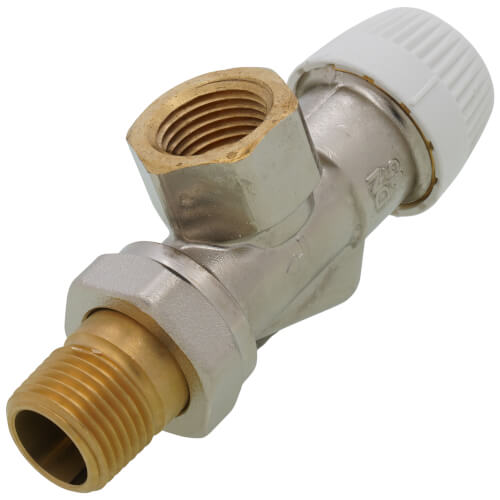

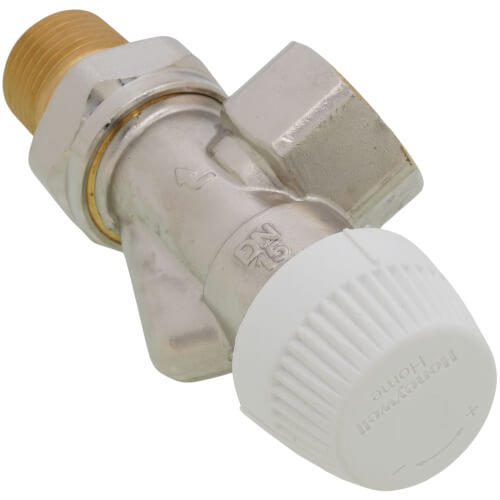

Honeywell Home V2040ASL15 1/2 Horizontal Angle Threaded Radiator Valve

Product Description

The Honeywell Home V2040ASL15 1/2 Horizontal Angle Threaded Radiator Valve allows for automatic temperature control in one-pipe steam or hot water systems. Ideal for use with free standing radiators, convectors, and other heating units.

• Consistent room temperature
• Adjustable balancing cartridge
• Nickel plated brass body

Product Highlights

This horizontal angle valve features a replaceable cartridge for easy maintenance. It operates without electrical connections and is compatible with T100 set points and capillary actuators.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V2040ASL15

Technical Specifications

• Pipe Size: 1/2 inch
• Body Pattern: Horizontal Angle
• Capacity (Cv): 2.5 Cv
• Capacity (BTU/hr-steam): 59,100 Btu/hr
• Connection Type: Threaded
• Pressure Ratings: Hot Water: 150 psi, Steam: 15 psi
• Differential Pressure Ratings: With T100 or T200: 15 psi, With MV100: 36 psi, For low noise: 3 psi
• Temperature Ratings: 248 F Maximum
• Materials: Nickel Plated Bronze
• Inlet Connection Size: 1/2 inch
• Inlet Connection Type: NPT
• Outlet Connection Type: Threaded
