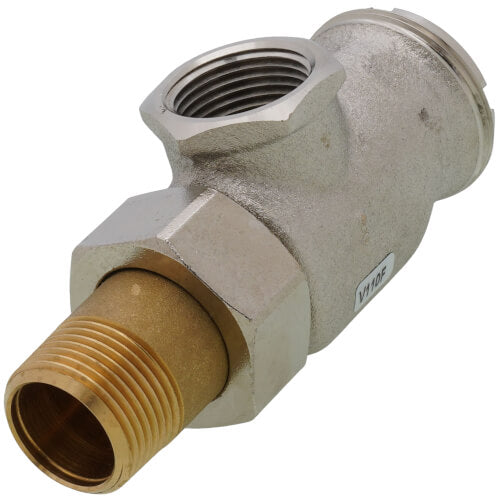

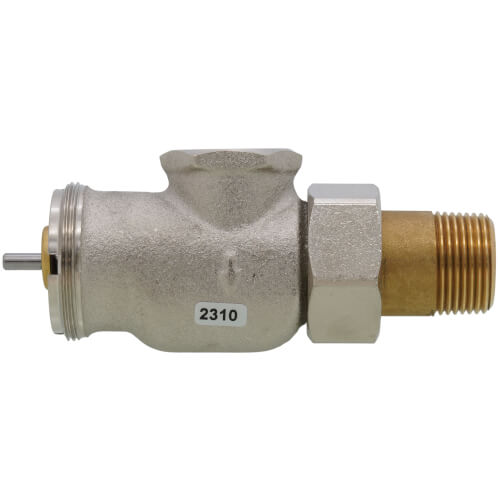

Honeywell Home V110F1010 Thermostatic Radiator Valve 3/4 Inch Horizontal Angle High Capacity

Product Description

The Honeywell Home V110F1010 Thermostatic Radiator Valve is designed to offer precise temperature control in heating systems. Featuring a robust nickel-plated bronze body and compatibility with a T104 Actuator, this valve is ideal for high-capacity heating units.

• Optimizes room temperature control in two-pipe heating systems.
• Equipped for high-density use, supporting up to 162,000 BTU/hr steam output.
• Features a threaded 3/4 inch connection and horizontal angle body style for easy installation.

Product Highlights

This valve supports temperature modulation via water or steam flow in freestanding radiators and convectors. With its resilient EPDM seat disc, it maintains tight shutoff, enhancing system efficiency.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: V110F1010

Technical Specifications

• Material: Bronze
• Temperature Range: Up to 248 F (120 C)
• Connection Type: Threaded
• Body Pattern: Horizontal Angle
• Pressure Ratings: Up to 150 psi for hot water; 15 psi for steam
• Pipe Size: 3/4 inch
• Capacity: 5.8 Cv, 162,000 BTU/hr steam
• Standards: Meets ASHRAE Standard 102-1989
