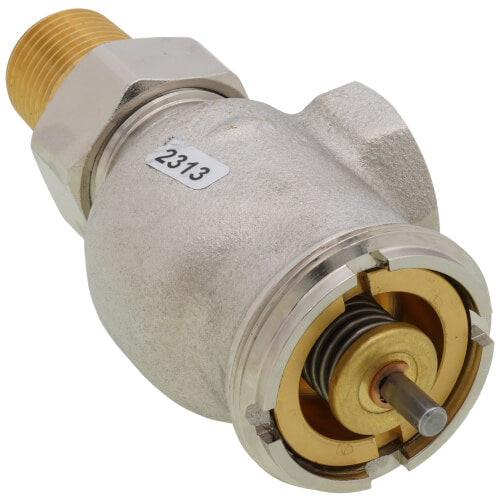

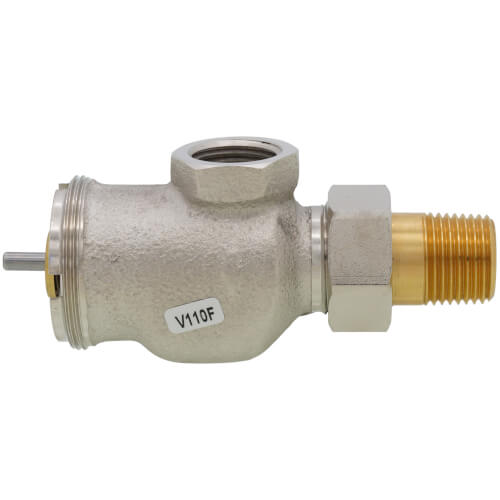

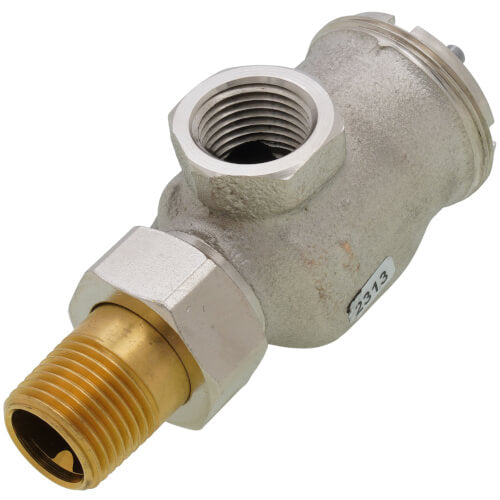

Honeywell Home V110F1002 Thermostatic Radiator Valve, 1/2 Inch Horizontal Angle High Capacity

Product Description

The Honeywell Home V110F1002 Thermostatic Radiator Valve is designed for precise temperature control in two-pipe heating systems. This high-capacity valve is ideal for use with steam or hot water systems, providing efficient heat regulation in radiators, convectors, and other high-capacity heating units.

• Efficient temperature modulation to prevent overheating and under-heating.
• Robust bronze construction with nickel-plating for durability and reliability.
• Simple serviceability with replaceable components while in-line, under pressure.

Product Highlights

This thermostatic valve features a horizontal angle body pattern and utilizes a resilient EPDM valve seat disc to ensure tight shutoff. It's crafted specifically for the high capacity needs typical of U.S. heating systems, does not require electrical connections, and is compatible with MV110 Electric Zone Valve Actuator.

Technical Specifications

• MPN: V110F1002
• Brand: Honeywell Home
• Connection Type: FNPT x MNPT Union
• Pressure Ratings: Up to 150 psi for hot water; 15 psi for steam
• Temperature Ratings: Up to 248 degrees Fahrenheit
• Dimensions: 1 inch x 2.25 inches
• Material: Bronze
• Body Style: Horizontal Angle
• Standards: ASHRAE Standard 102-1989
• Flow Capacity: 4.6 Cv
