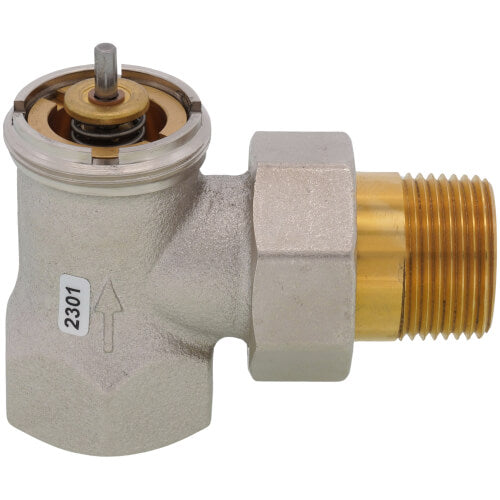

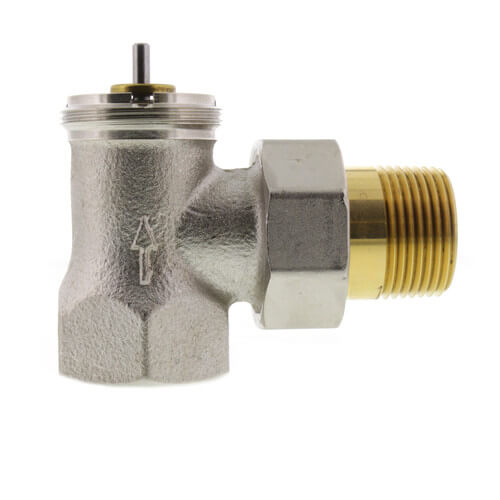

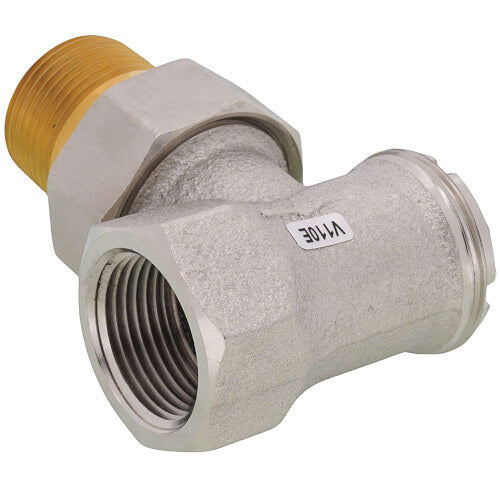

Honeywell Home V110E1020 1 Inch Angle Valve for High Capacity Radiator

Product Description

The Honeywell Home V110E1020 1 Inch Angle Valve enhances control over room temperature in high capacity heating systems like free-standing radiators and convectors. This valve modulates the flow of hot water or steam, ensuring precision in heat distribution.

• Robust bronze body with a nickel-plated finish for durability and corrosion resistance.
• Features EPDM valve seat disc providing tight shut-off, suitable for steam and hot water systems.
• Designed for easy in-line, under-pressure maintenance without system shutdown.

Product Highlights

Valves may be used with T104 Thermostatic Actuators for improved functionality. Designed to meet the high capacity demands of North American heating systems.

Product Information

Standard Information

• Application: Control of room temperature in two-pipe systems.
• Body Style: Angle.

Technical Specifications

• Body Material: Bronze.
• Connection Type: FNPT x MNPT Union, Threaded.
• Pressure Ratings: 150 psi (hot water), 15 psi (steam).
• Temperature Range: Up to 248 degrees Fahrenheit.
• Maximum Differential Pressure Ratings: 17 psi (close-off).
• Capacity: 193,000 Btu/hr (steam).
• Flow Capacity (Cv): 7.0.
