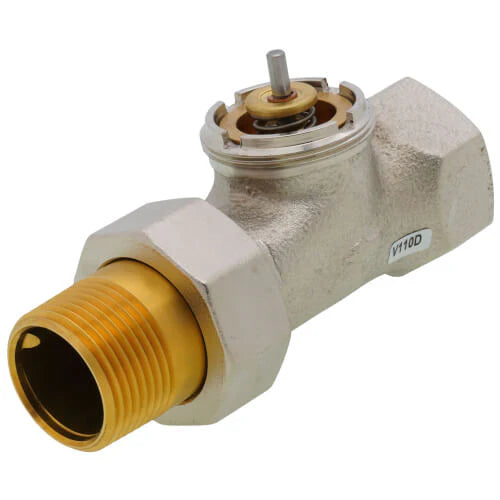

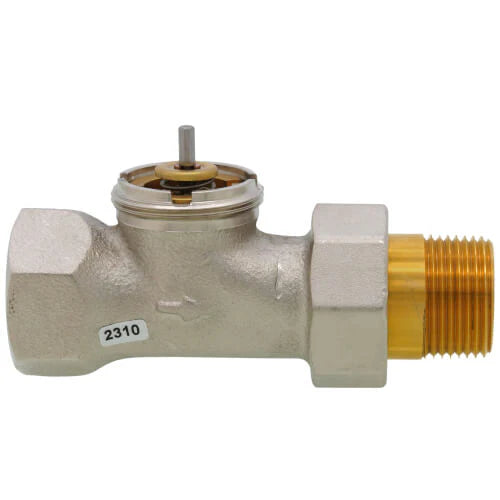

Honeywell Home V110D1016 1 Inch Straight Valve for High Capacity Radiator

Product Description

The Honeywell Home V110D1016 1 Inch Straight Valve is designed for regulating high-capacity heating systems via modulation of hot water or steam flow. Compatible with T104 actuators, this valve ensures robust and reliable temperature control in heating environments.

• Robust EPDM-made valve seat disc ensures tight shut-off capabilities.
• Features a nickel-plated bronze casted body for enhanced durability.
• All components are replaceable while the valve remains in service, assuring easy maintenance.

Product Highlights

Optimized for use in North American heating systems, this thermostatic radiator valve offers a straightforward in-line service with its cartridge insert design. Suitable for both hot water and steam systems, it meets the rigorous ASHRAE Standard 102-1989.

Product Information

Standard Information

• Pressure Capacity: Up to 150 psi for hot water and 15 psi for steam
• Temperature Range: Up to 248 degrees Fahrenheit

Technical Specifications

• Connection Type: Threaded
• Body Pattern: Straight
• Pipe Size: 1 inch
• Material: Nickel Plated Bronze
• Maximum Differential Pressure: 17 psi
• Flow Capacity (Cv): 7 Cv
• BTU/hr-steam: 193,000 Btu/hr
