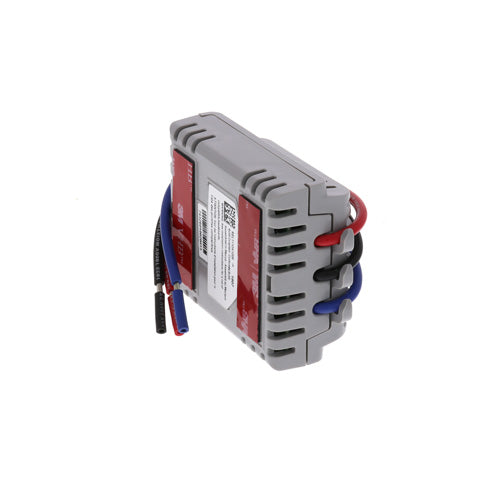

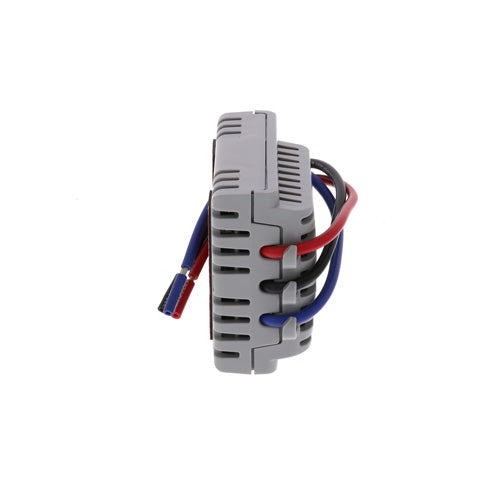

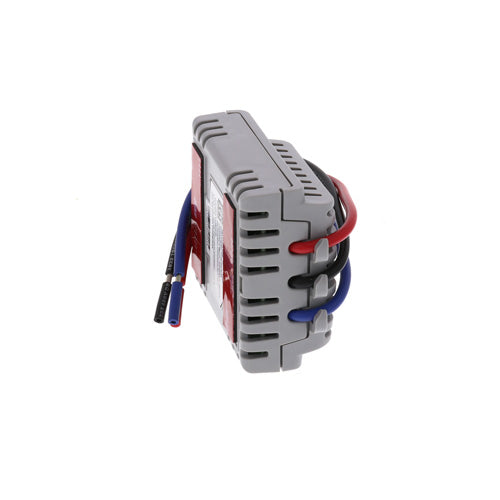

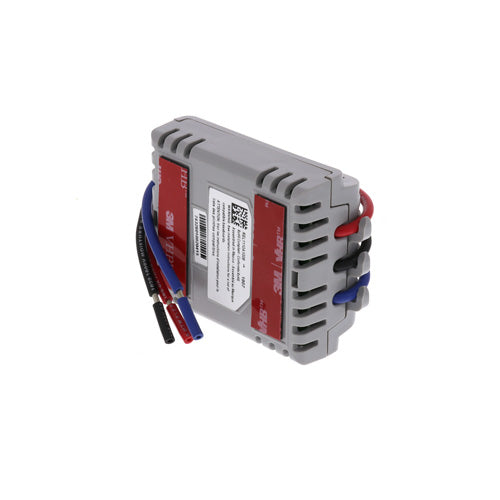

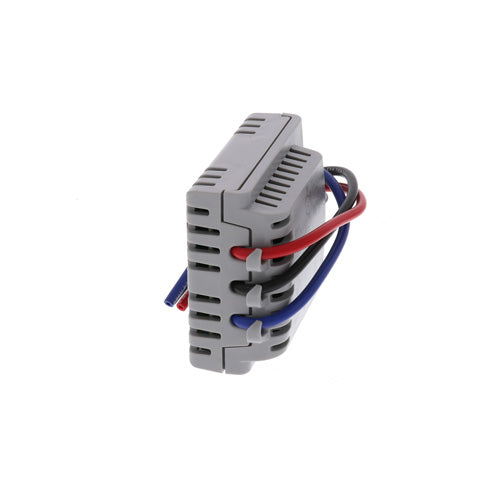

Honeywell Home TLM1110R1000 RedLINK Enabled Electric Heat Interface Module 120V to 240V

Product Description

The Honeywell Home TLM1110R1000 RedLINK Enabled Electric Heat Interface Module is designed to enhance the functionality and convenience of your heating system.

• Supports baseboards, convectors, and fan-forced heaters up to 12.5 amps.
• Flexible power compatibility with both 120V and 240V options.
• Seamless integration with Honeywell Home RedLINK systems.

Product Highlights

This module simplifies installation and enhances the control of line-voltage heating equipment through wireless technology, making it a critical component for modern HVAC systems.

Product Information

Standard Information

• Brand: Honeywell Home
• MPN: TLM1110R1000

Technical Specifications

• Power: 120V - 240V AC
• Maximum Current: 12.5 Amps
• Power Rating: 1500W at 120V, 3000W at 240V
• Frequency: Compatible with both 50 Hz and 60 Hz systems
• Application: Ideal for electric heat systems
• Installation: Hardwired EIM
• Temperature Range: -4°F to 140°F
• Wireless System Compatibility: RedLink
