Honeywell Home THX1000W1 ElitePRO S1000 Hardwired (4.3 in)

Brand: HONEYWELL HOME
SKU: THX1000W1
Availability: In Stock

Ships same day if ordered by 12 pm
$300.98
$300.98
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

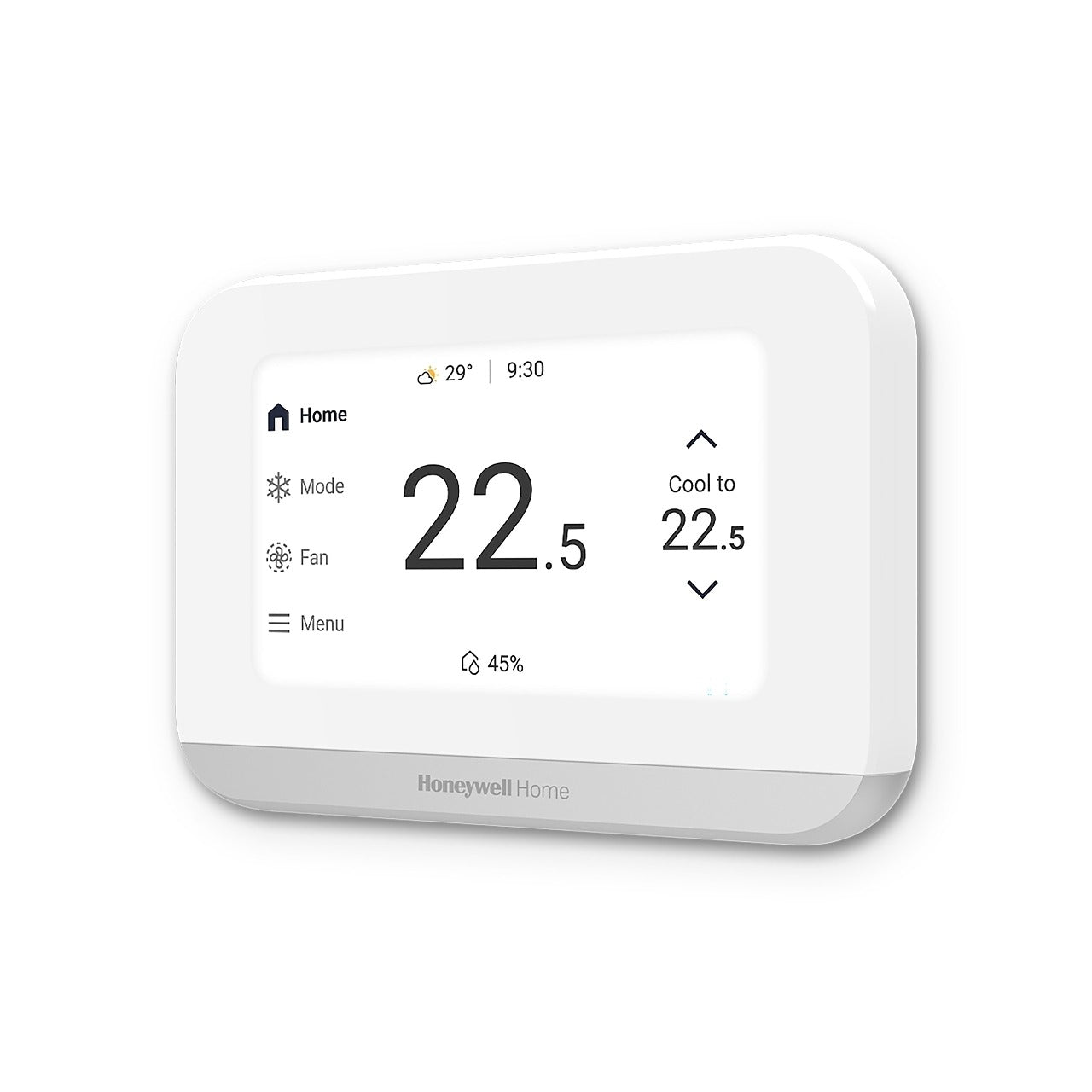

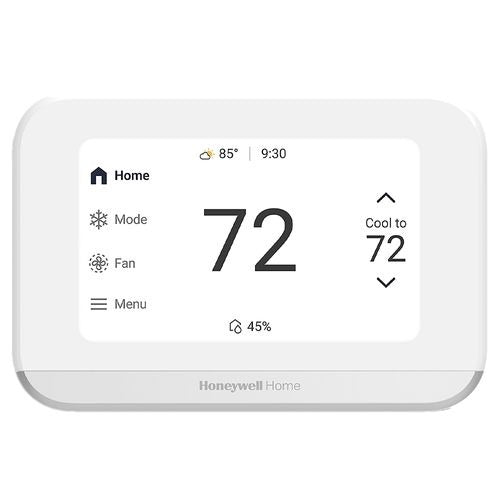

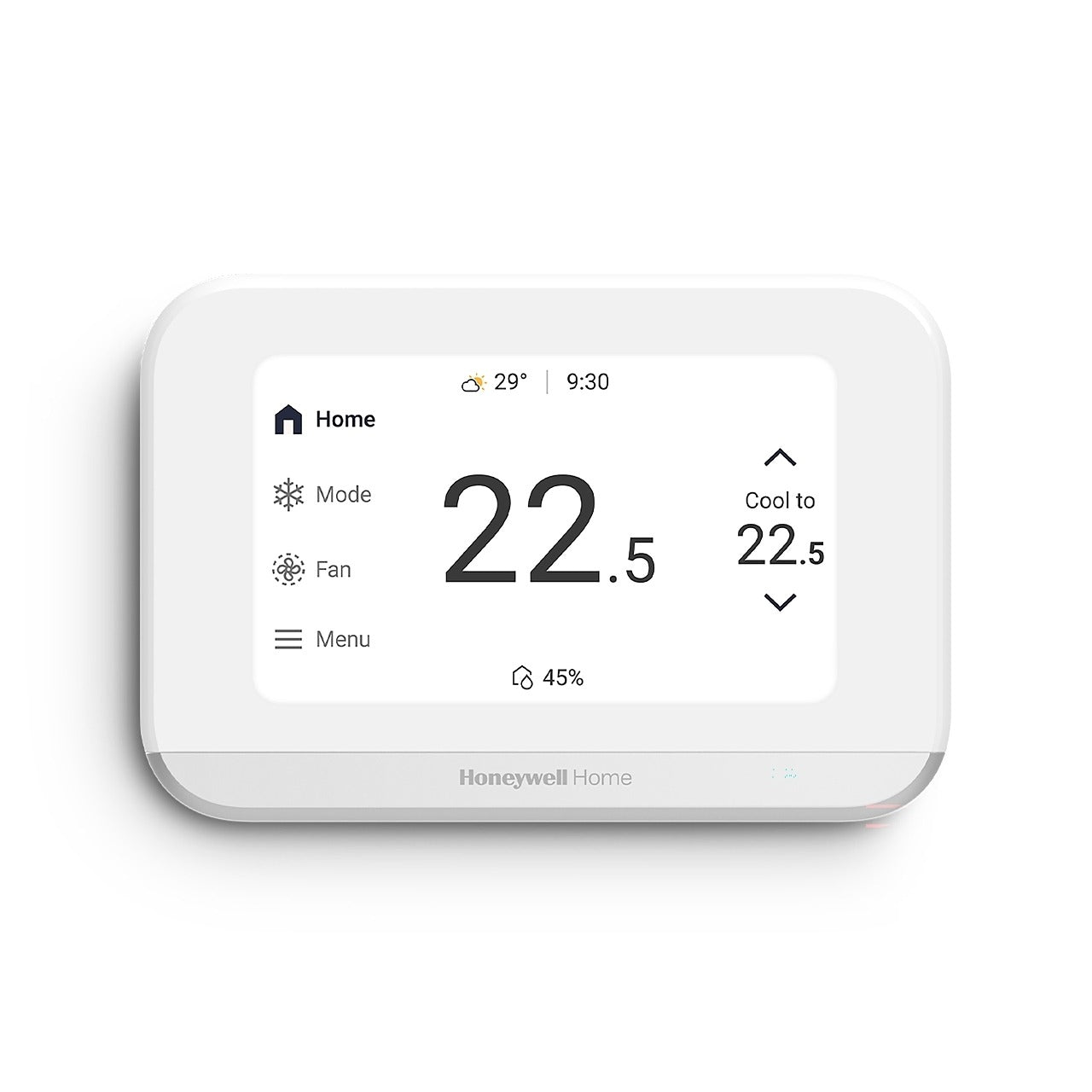

The Honeywell Home THX1000W1 is an ElitePRO S1000 smart thermostat featuring a 4.3-inch customizable touchscreen that provides HVAC and indoor air quality control for residential and light commercial 24 Vac systems. It supports multi-stage heat pump and conventional systems, offers WiFi, Bluetooth, and RedLINK connectivity, includes an onboard radar occupancy sensor, and supplies configurable outputs for humidifiers, dehumidifiers, or ventilators.

  • Supports up to 4 heat/2 cool (heat pump) and up to 2 heat/3 cool (conventional) systems; compatible with dual fuel, fan-coil, radiant, and PTAC systems
  • Connectivity: WiFi (2.4 & 5 GHz), BLE 2.4 GHz, RedLINK 3.0; supports optional remote room and outdoor sensors
  • Hardwired 24 Vac power, ENERGY STAR certified, onboard radar occupancy and ambient light sensors

Product Highlights

4.3 in touchscreen thermostat for 24 Vac residential and light commercial HVAC with IAQ outputs, multi-protocol connectivity, and onboard occupancy sensing

Product Information

Standard Information

  • Brand: HONEYWELL HOME
  • Manufacturer Part Number: THX1000W1
Technical Specifications
Brand
Honeywell Home
Manufacturer Part Number
THX1000W1
Series
ElitePRO S1000
Product Name
ElitePRO S1000 Smart Thermostat
Display Size
4.3 in diagonal
Touchscreen
Yes
Input Voltage
24 Vac
Power Supply
Hardwired
Power Supply Frequency
60 Hz
Connectivity
WiFi, Bluetooth, RedLINK, Matter
WiFi
2.4 & 5 GHz
Bluetooth
BLE 2.4 GHz
RedLINK
3.0
Sensors
Onboard radar occupancy sensor and ambient light sensor; supports optional remote room sensors
HVAC Compatibility
Up to 4H/2C heat pump; Up to 2H/3C conventional (includes dual fuel, fan-coil, radiant, PTAC)
IAQ / Humidity Control
Configurable outputs for humidifier, dehumidifier, or ventilator control; indoor humidity monitoring
Modes of Operation
Heat, Off, Cool, Auto, Emergency heat
Auto Changeover
Yes
Energy Certification
ENERGY STAR certified
Display Language
Selectable: English, French, Spanish
Operating Temperature Range
37 F (3 C) to 102 F (39 C)
Operating Relative Humidity
5% RH to 90% RH
Set Point Temperature Range
Heat: 40 F to 90 F (4.5 C to 32 C); Cool: 50 F to 99 F (10 C to 37 C)
Humidity Set Point Range
0% RH to 90% RH
Mounting Type
Horizontal mount, Junction box, Wall surface, UWP mounting system
Product Height
3.54 in (90 mm)
Product Width
5.25 in (133 mm)
Product Depth
0.96 in (24 mm)
Product Weight
0.91 lb
Compatible Sensor
C7189R3010-2 room sensor
For Use With
THP9045A C-wire adapter; C7089R3013 wireless outdoor sensor; EIM4010 Equipment Interface Module
Includes
ElitePRO S1000 thermostat, UWP wall plate, decorative cover plate with J-box adapter, screws and anchors
