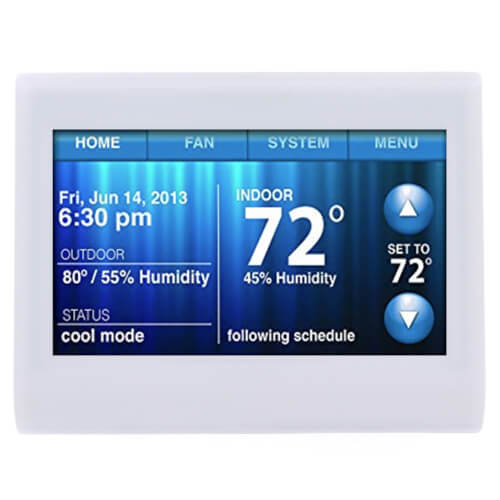

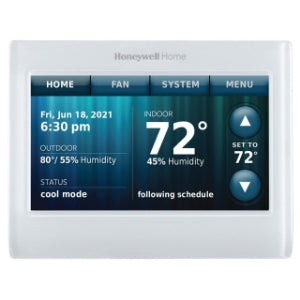

Resideo TH9320WF5003 Wireless Wi-Fi Programmable Thermostat 3H/2C

Product Description

The Resideo TH9320WF5003 Wireless Wi-Fi Programmable Thermostat offers reliable control of home heating and cooling systems. Manage temperatures from anywhere using a computer, smartphone, or tablet.

• Temperature control from 40 to 90 degrees Fahrenheit for heating
• Provides 3 heat pump and 2 conventional stages for heating and cooling
• Color touchscreen display for intuitive operation

Product Highlights

Easily connect to your home's existing Wi-Fi network and manage comfort settings remotely. Automatic software updates and customizable screen colors enhance the user experience.

Product Information

Standard Information

• Application: Multi-Stage Heat Pumps
• Connects To: Wi-Fi Network
• Control Method: Web, Tablet, Smartphone

Technical Specifications

• Type: Wireless Wi-Fi
• Color: Premier White
• Series: TH9320
• Display: Color Touchscreen
• Dimensions: 7/8 Inch L x 4-1/2 Inch W x 3-1/2 Inch H
• Application: Conventional or Heat Pump
• Stages Cool: 2 Heat Pump, 2 Conventional
• Stages Heat: 3 Heat Pump, 2 Conventional
• Manufacturer: Resideo Honeywell Home
• Power Source: Battery/Hardwired
• Control Range: 40 - 90 Degrees Fahrenheit (Heat), 50 - 99 Degrees Fahrenheit (Cool)
• Fan Switching: Auto-On-Program-Circulate
• Mounting Type: Horizontal
• Voltage Rating: 18/30 VAC, 50/60 Hz
• Number of Stages: 2H/2C Conventional, 3H/2C Heat Pump
• System Switching: Auto-Heat-Cool-Off-Emergency
• Programs Per Week: 7

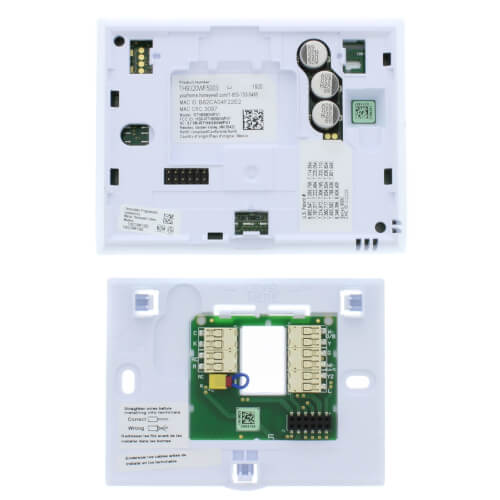

• Terminal Designations: R, RC, C, W (O/B), W2 (AUX/E), Y, Y2, G, L, K
• Temperature Settings Per Day: 4
