Honeywell Home TH2320U4006 FocusPRO P200 Programmable Thermostat 24 Vac (Single) TH2320U4006

Brand: HONEYWELL HOME
SKU: TH2320U4006
Availability: In Stock

Ships same day if ordered by 12 pm
$110.86
$110.86
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

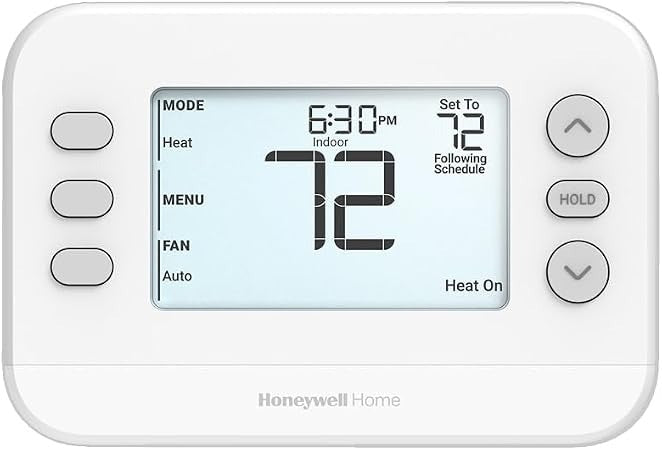

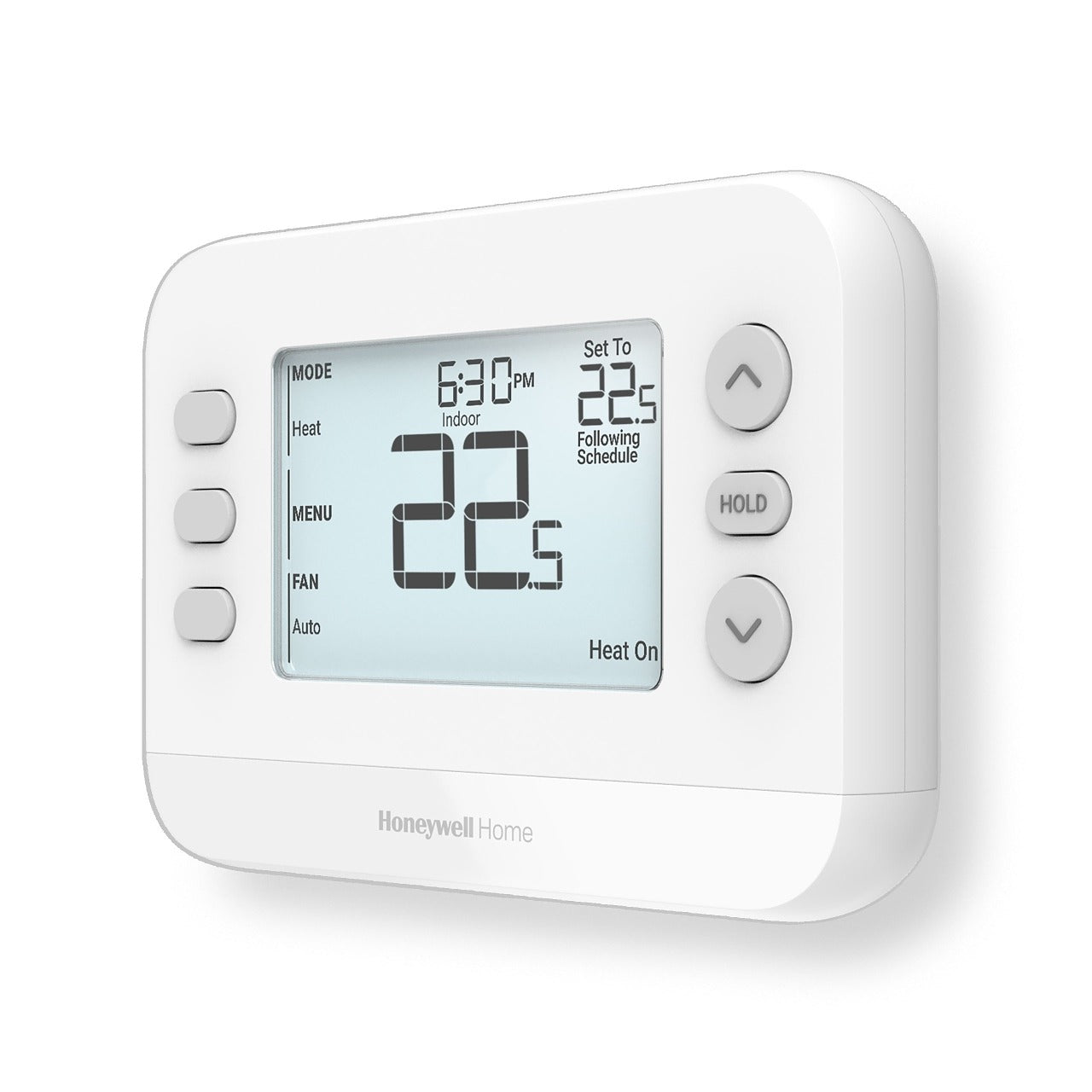

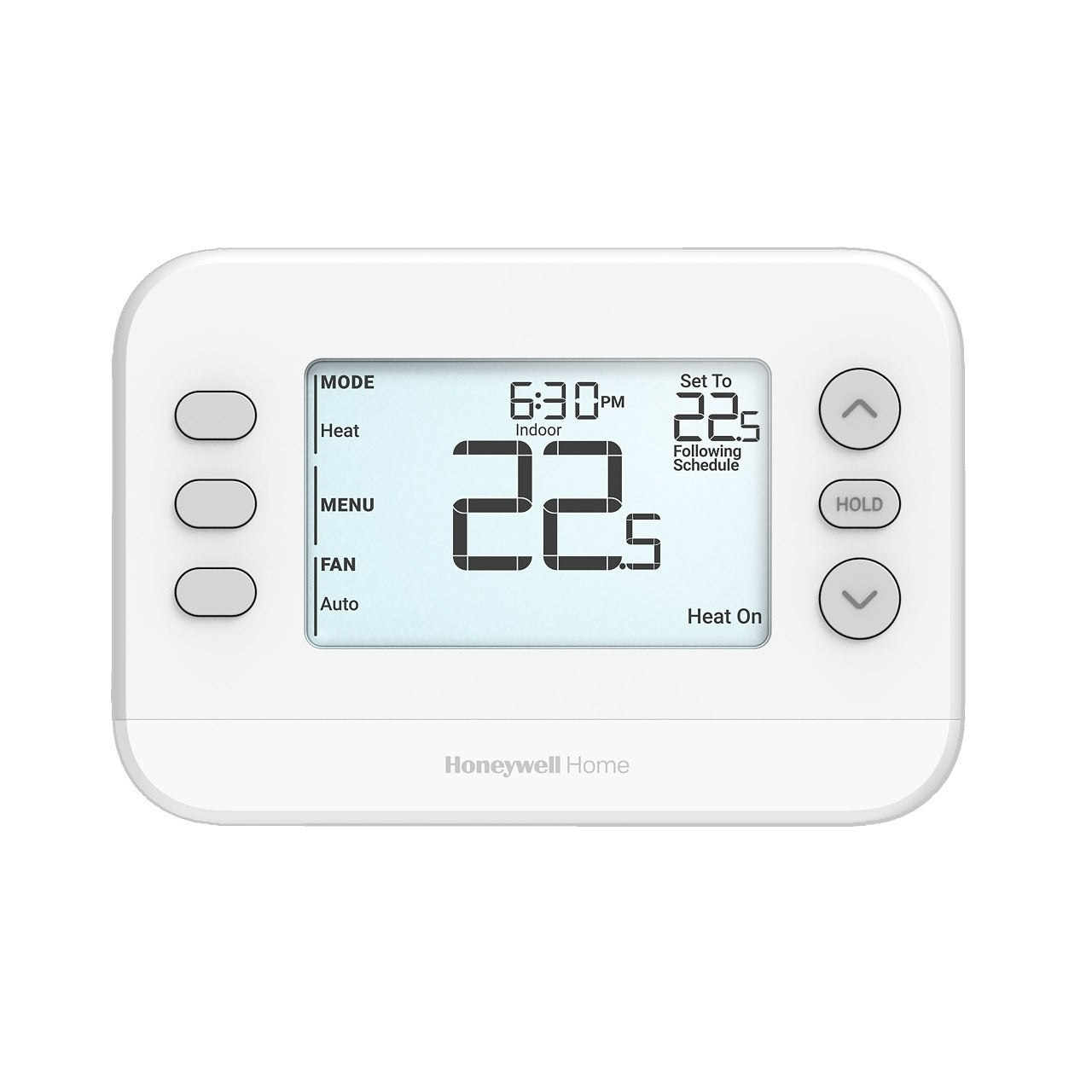

The Honeywell Home TH2320U4006 FocusPRO P200 is a programmable thermostat for 24 Vac residential HVAC systems that supports up to 3 heat/2 cool heat pump stages or up to 2 heat/2 cool conventional stages. It features a 4.84 sq. in. LCD display, multiple scheduling options (7-day, 5-1-1, 5-2, 1-week or scheduling off), optional always-on backlight when hardwired, filter change and heat pump failure alerts, and UWP mounting for installation.

  • Supports up to 3H/2C heat pump and up to 2H/2C conventional systems; modes: Heat, Off, Cool, Auto
  • Large 4.84 sq. in. LCD with display of mode, current/set temperature, fan and time; optional always-on backlight when hardwired
  • Power via 24 Vac hardwired or 2 AA batteries; includes UWP mounting plate, decorative cover plate with J-box adapter, mounting hardware

Product Highlights

Programmable 24 Vac thermostat with multi-stage heat pump and conventional compatibility, flexible scheduling, large LCD, filter and heat pump alerts, and UWP mounting.

Product Information

Standard Information

  • Brand: HONEYWELL HOME
  • Manufacturer Part Number: TH2320U4006
Technical Specifications
Brand
Honeywell Home
Manufacturer Part Number
TH2320U4006
SKU
TH2320U4006/U
Model Name
FocusPRO P200
Thermostat Type
Programmable, Digital
Application
24 Vac heat and cool systems; gas, oil, electric, steam/radiant hot water; heat pumps with auxiliary heat; 750 millivolt systems
Stages
Up to 3 Heat / 2 Cool heat pump; Up to 2 Heat / 2 Cool conventional
Display Type
LCD
Display Size
4.84 sq. in.
Display Language
English
Displayed Information
Mode, Current Temperature, Set Temperature, Status Display, Fan, Time
Modes of Operation
Heat, Off, Cool, Auto
Program Type
7-day, 5-1-1, 5-2, 1 week, or scheduling off
Alerts and Reminders
Heat pump failure, Filter change
Heat-Cool Changeover
Auto or Manual
Input Voltage
24 Vac
Power Supply
Hardwired (24 Vac) or battery (2 AA)
Number of Batteries
2 AA
Frequency
60 Hz
Mounting Type
UWP wall plate / Wall mount
Electrical Connection Type
UWP Mounting System
Control Method
Touch
Connectivity Technology
Wired
Temperature Accuracy
±1 °F (±0.5 °C)
Differential Temperature
±1 °F (±0.5 °C)
Set Point Temperature Range
Heat: 32 to 90 °F (0 to 32 °C); Cool: 50 to 99 °F (10 to 37 °C)
Operating Temperature Range
32 to 120 °F (0 to 49 °C)
Storage Temperature Range
-20 to 120 °F (-29 to 49 °C)
Operating Relative Humidity
5% to 90% RH non-condensing
Switch Type
Relay
Dimensions
3.44 in H x 5.13 in W x 1.188 in D (87 mm x 130 mm x 29.5 mm)
Weight
13.12 oz (372 g)
Includes
UWP mounting plate, Decorative cover plate with J-box adapter, Mounting hardware, 2 AA batteries, Literature
For Use With
C7089U1006 wired outdoor sensor
Special Features
Filter indicator, Low battery indicator, Optional always-on backlight when hardwired, Fan lockout after cool call, Dual fuel compatible
Hazmat Information
Not restricted - Special Provision A123
