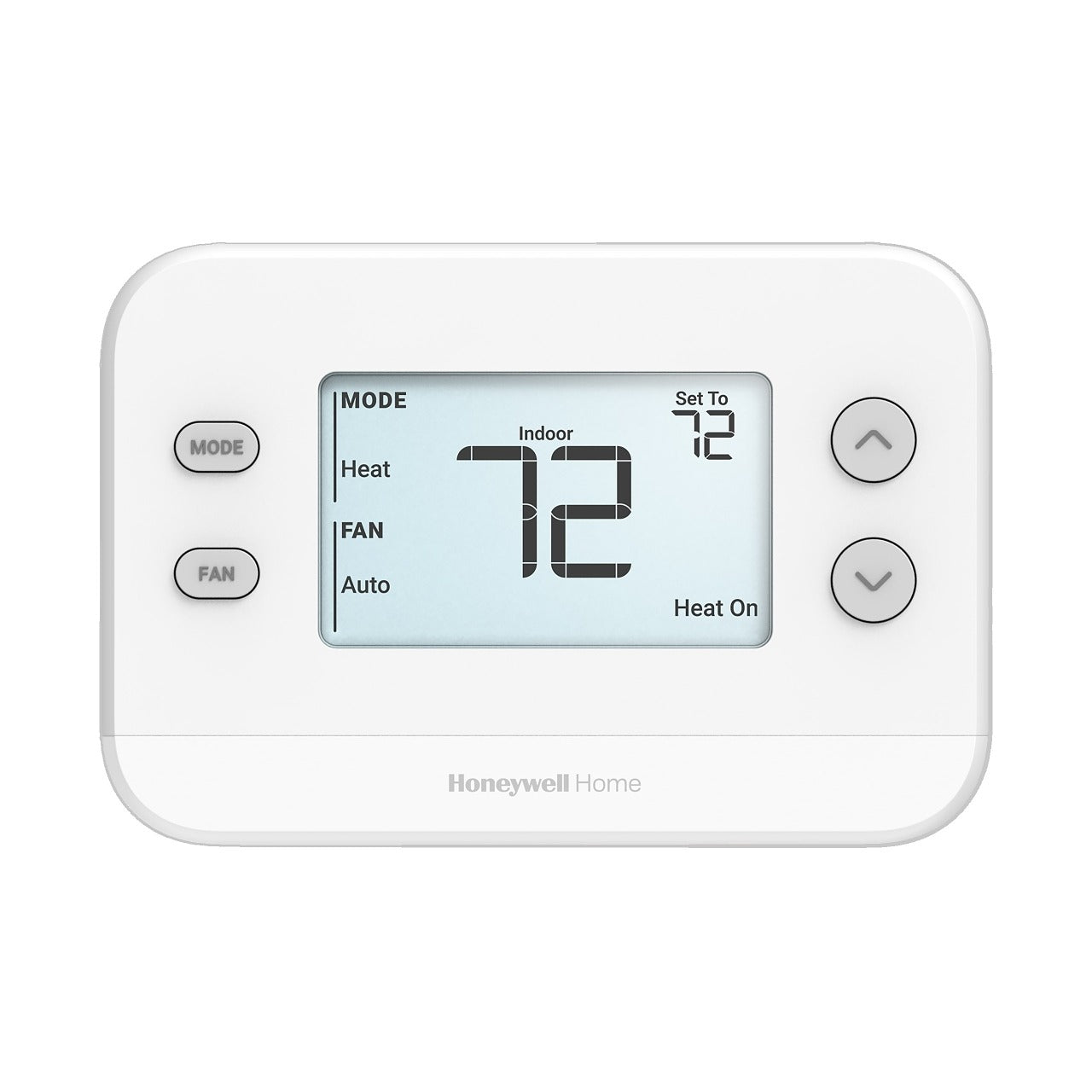

HONEYWELL HOME Honeywell Home TH1320U4002 FocusPRO N100 Non-Programmable Thermostat Battery/24V (3H/2C Heat Pump, 2H/2C Conventional)
HONEYWELL HOME Honeywell Home TH1320U4002 FocusPRO N100 Non-Programmable Thermostat Battery/24V (3H/2C Heat Pump, 2H/2C Conventional)

Honeywell Home TH1320U4002 FocusPRO N100 Non-Programmable Thermostat Battery/24V (3H/2C Heat Pump, 2H/2C Conventional)

Brand: HONEYWELL HOME
SKU: TH1320U4002
Availability: In Stock

Ships same day if ordered by 12 pm
$100.40
$100.40
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Honeywell Home TH1320U4002 is the FocusPRO N100 non-programmable thermostat that supports up to 3 heat/2 cool heat pump stages and up to 2 heat/2 cool conventional stages. It can be powered by two AA batteries or optional 24 V hardwiring and features a large LCD with optional always-on backlight, a UWP universal wall plate for installation, selectable filter reminders, configurable heat low limit, dual-fuel and wired outdoor sensor compatibility, and a fan lockout after cool call option.

  • Supports up to 3H/2C heat pump and 2H/2C conventional systems with relay switching
  • Powered by two AA batteries or optional 24 V hardwired input
  • Large LCD display with optional always-on backlight, UWP universal wall plate, selectable filter reminders, and configurable heat low limit

Product Highlights

Non-programmable digital thermostat with UWP mounting, multi-stage system support, dual-fuel and wired outdoor sensor compatibility

Product Information

Standard Information

  • Brand: HONEYWELL HOME
  • Manufacturer Part Number: TH1320U4002
  • Country of Origin: Mexico
Technical Specifications
Brand
Honeywell Home
Manufacturer Part Number
TH1320U4002
Model Name
FocusPRO N100
Product Type
Non-Programmable Thermostat
Supported Systems
Up to 3 Heat / 2 Cool (heat pump); Up to 2 Heat / 2 Cool (conventional)
Stages
3 Heat / 2 Cool heat pump; 2 Heat / 2 Cool conventional
Power Source
Battery or 24 V hardwired
Input Voltage
24 V (typical HVAC control voltage)
Number of Batteries
2
Battery Type
AA alkaline
Display Type
LCD (large display) with optional always-on backlight when hardwired
Display Size
4.09 sq. in.
Display Language
English
Mounting Type
Wall mount (UWP universal wall plate)
Wall Plate
UWP universal wall plate
Dimensions (H x W x D)
3.44 in x 5.13 in x 1.188 in (87 mm x 130 mm x 29.5 mm)
Operating Temperature Range
32 to 120 F (0 to 49 C)
Operating Relative Humidity
5% to 90% RH, non-condensing
Set point Temperature Range
Heat: 32 to 90 F; Cool: 50 to 99 F
Heat Low Limit
Defaults to 40 F (4 C); configurable to 32 F (0 C) for garage applications
Control Range
Heat 32 to 90 F; Cool 50 to 99 F
Fan Lockout
Fan lockout after cool call option
Filter Reminders
User-selectable filter reminders
Compatible Outdoor Sensor
C7089U1006 wired outdoor sensor
Switch Type
Relay
Includes
Thermostat, UWP mounting plate, decorative cover plate with J-box adaptor, mounting hardware, AA batteries, literature
Country of Origin
Mexico
UPC
194159017429
Manufacturer
Resideo Honeywell Home
