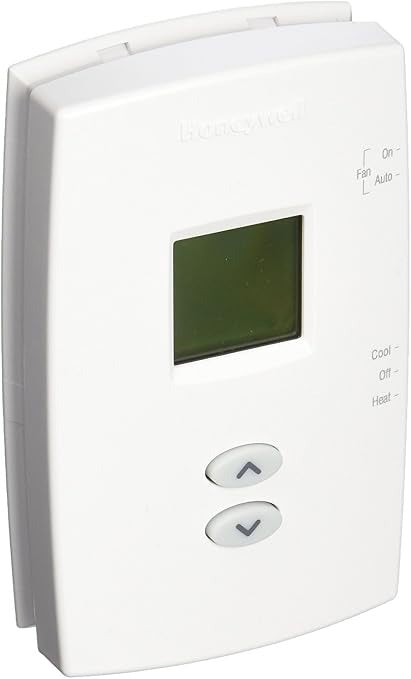

Honeywell Home TH1110DV1009 Pro 1000 Non-Programmable Thermostat 24V (Vertical) TH1110D1000

Product Description

Honeywell Home TH1110DV1009 is a Pro 1000 non-programmable vertical thermostat for single-stage (1 heat/1 cool) conventional systems and compatible heat pumps with no auxiliary heat. It provides a backlit display that shows ambient temperature, one-touch setpoint access, built-in compressor protection, manual heat/cool changeover and an optional fan control. Power can be supplied via low-voltage hardwiring or batteries and it supports common thermostat wiring terminals.

• Non-programmable single-stage control (1 Heat/1 Cool) with manual changeover and fan control option
• Backlit display with one-touch setpoint access and built-in compressor protection; push-button interface

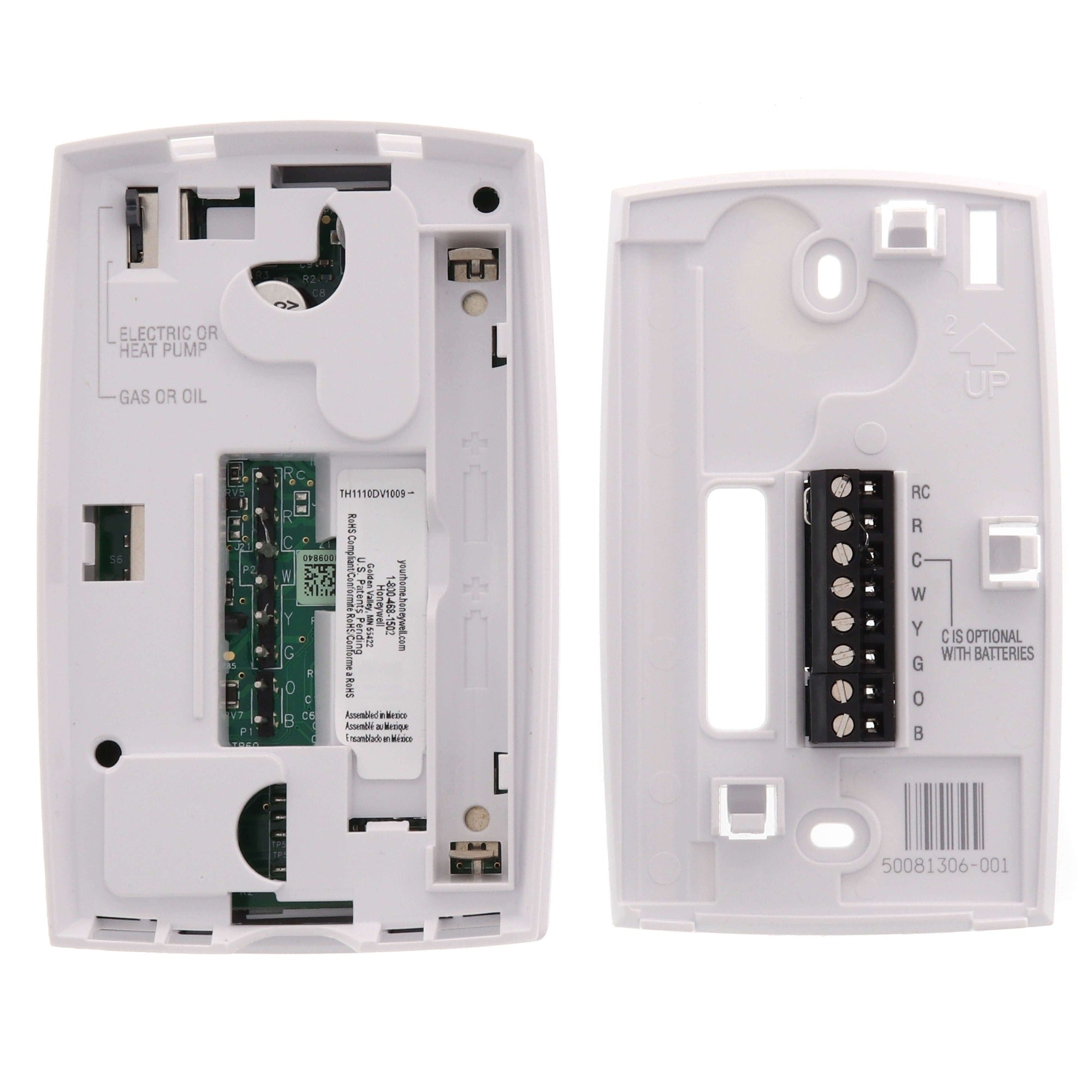

• Supports low-voltage input (24 VAC) and indicates compatibility with millivolt systems (~750 mV); wiring terminals R, RC, C, W, Y, G, O, B; operating current 0.02–1 A

Product Highlights

Pro 1000 vertical non-programmable thermostat; backlit ambient temperature display; manual heat/cool changeover; hardwired or battery power; compatible with single-stage systems and heat pumps.

Product Information

Standard Information

• Brand: HONEYWELL HOME
• Manufacturer Part Number: TH1110DV1009
