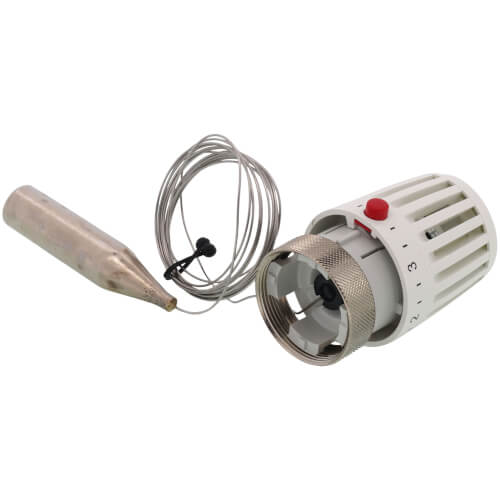

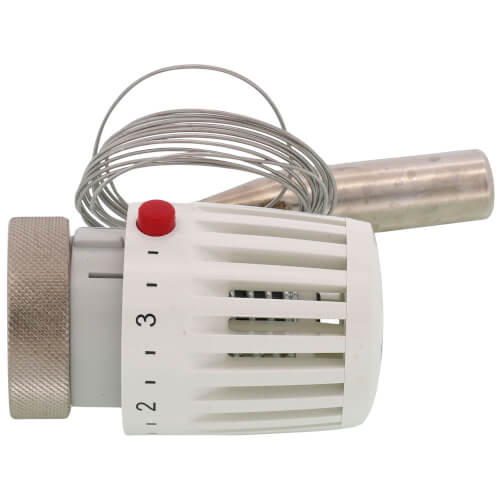

Honeywell Home T104F1512 High Capacity Thermostatic Radiator Actuator - Remote Sensor

Product Description

The Honeywell Home T104F1512 High Capacity Thermostatic Radiator Actuator with remote sensor provides precise and automatic control of room temperature in two-pipe systems. It modulates the flow of hot water or steam through free-standing radiators, convectors, and other heating units with high capacity requirements.

• Nickel-plated cast-bronze body
• Resilient EPDM valve seat disc
• No electrical connection needed

Product Highlights

This actuator features a robust nickel-plated cast-bronze body and an EPDM valve seat disc for tight shutoff on steam or hot water systems. It is easy to service with all working parts in a cartridge insert and does not require an electrical connection.

Product Information

Standard Information

• Used With: V110 series valves
• Valves: Also used with MV110 Electric Zone Valve Actuator

Technical Specifications

• Control: Includes sensor, setpoint dial, and valve actuator
• Replacement: All working parts replaceable with MT100C1011 service tool
• Valves: Normally open without control mounted
• Standard: ASHRAE Standard 102-1989
• Sensor: Remote
• Setpoint: Integral
• Capillary Length: 80 inches
• Temperature Range: 43 to 79 degrees Fahrenheit
• Collar Diameter: 1.59375 inches
• Max Pressure: Water 150 psi, Steam 15 psi
• Compatible Product Type: Thermostatic Radiator Valve
• Material: Nickel-Plated Bronze
