Resideo T100R1012 Thermostatic Mixing and Diverting Actuator - 86-158F

Product Description

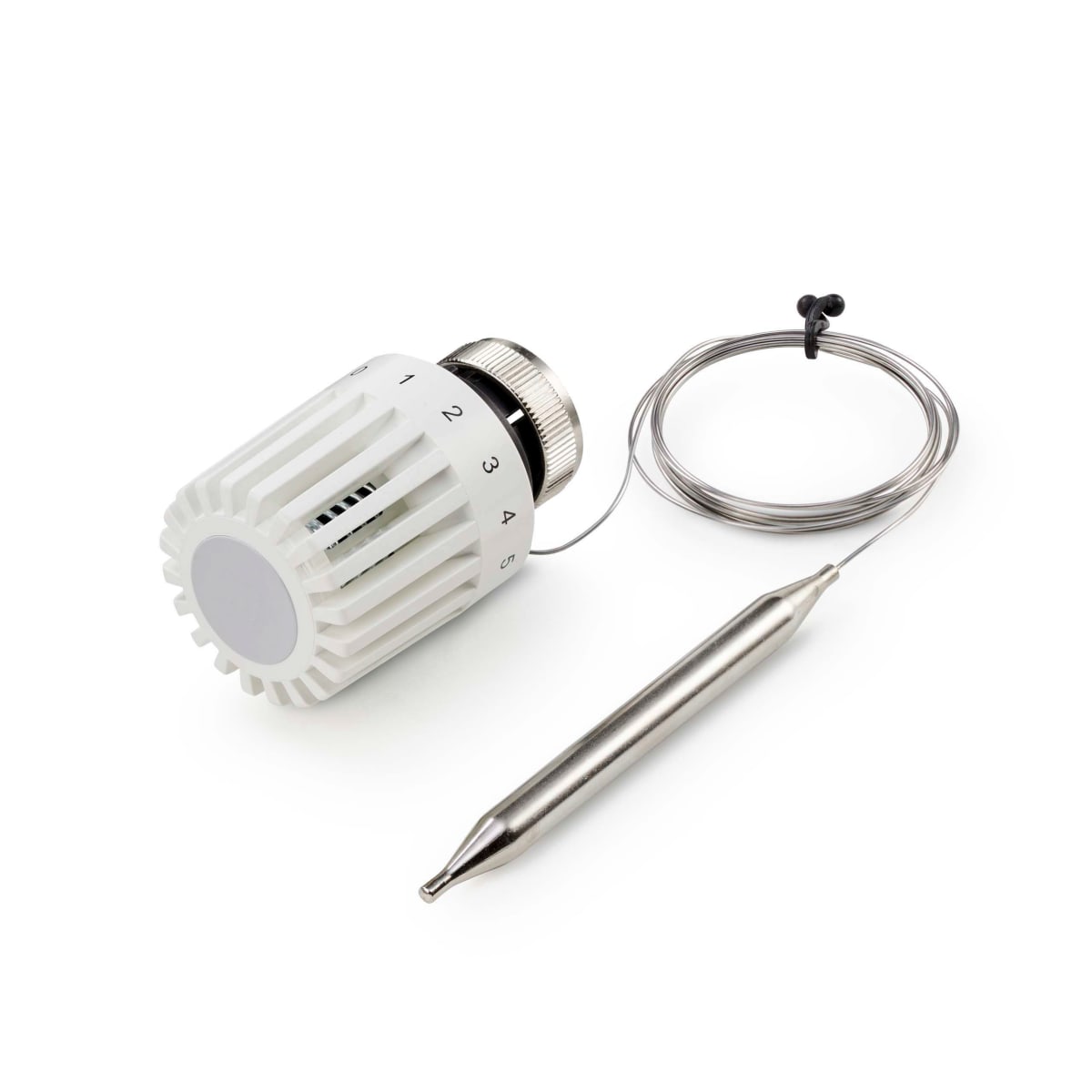

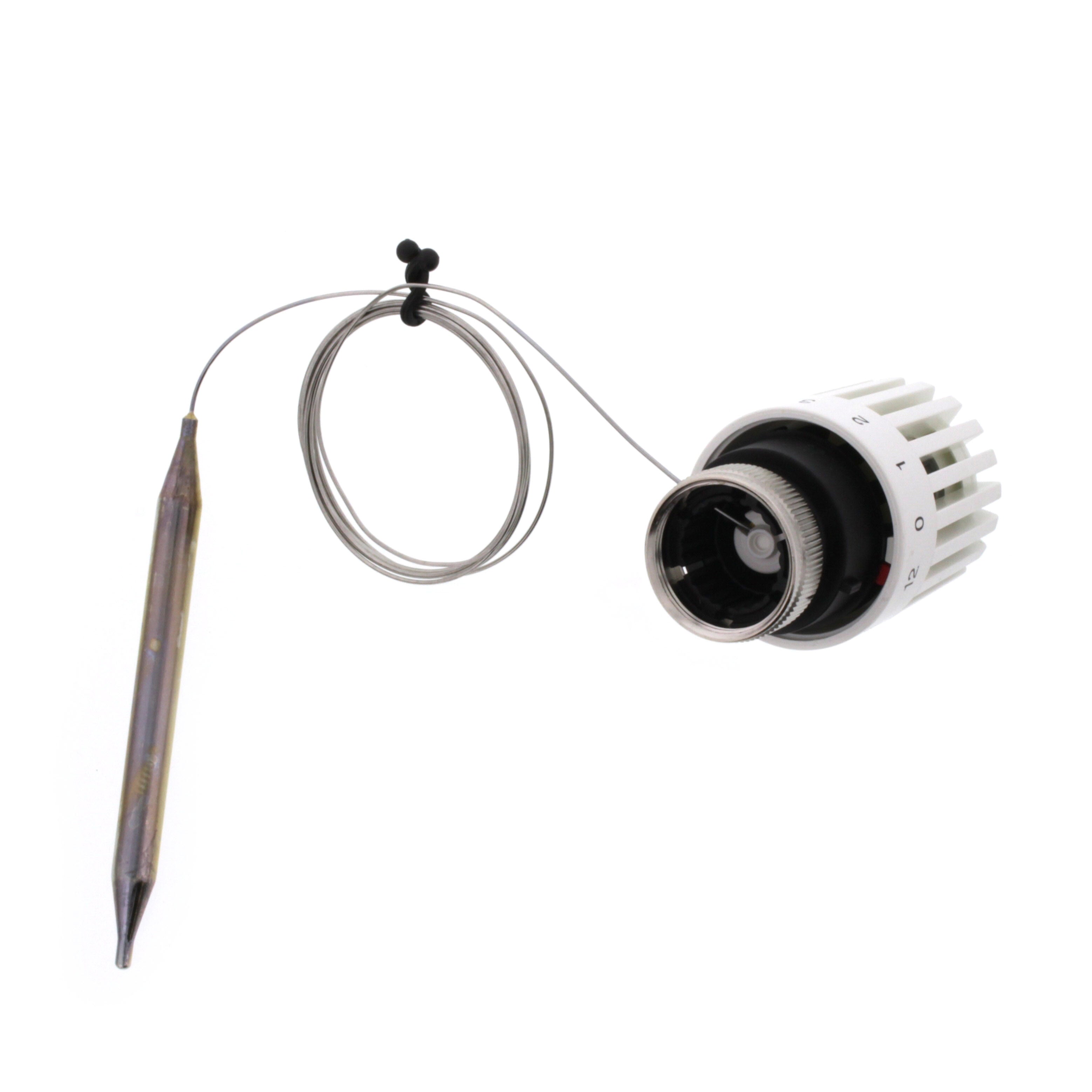

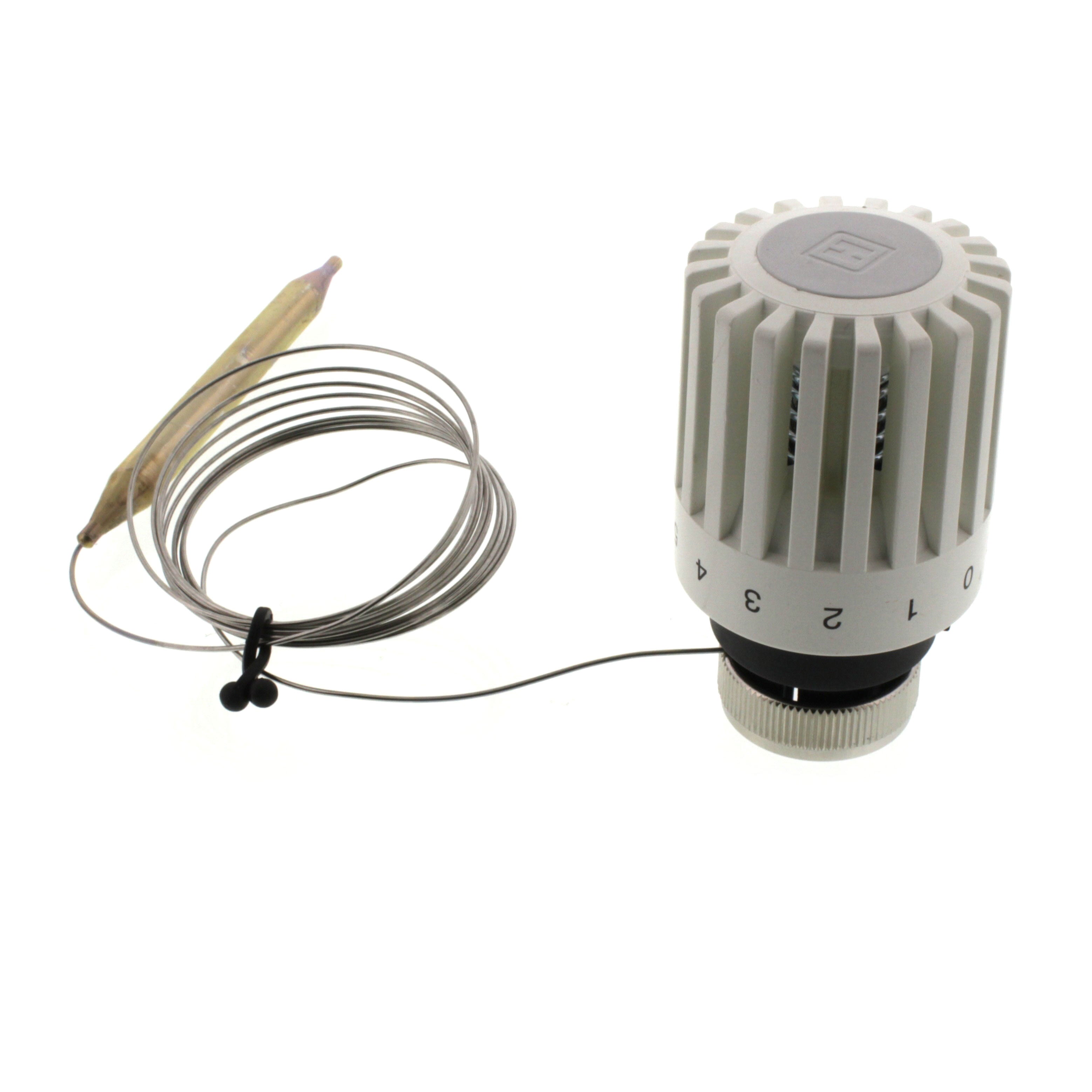

The Resideo T100R1012 is a thermostatic control designed for use in hydronic heating systems where remote sensing is necessary. This actuator features a remote sensor that connects via a six-foot-eight-inch capillary tube. The unit is suitable for mounting on V100 or V135 valves, which are used for either diverting or mixing applications in heating systems.

• Equipped with a strap clamp for external sensor attachment.
• Adjustable temperature range from 86°F to 158°F.
• Compatible with V135 mixing valves and V100 for straight fluid flow.

Product Highlights

This actuator helps control loop temperature in radiant heating systems, ensuring efficient heating performance.

Product Information

Standard Information

• Brand: Resideo
• MPN: T100R1012

Technical Specifications

• Capillary Length: 6 ft 8 in
• Temperature Range: 86°F - 158°F
• Compatible With: V135 Mixing and Diverting Valves, V100 Straight Through Fluid Flow
• Dimensions: 3.65 inches x 6.15 inches x 2.5 inches
• Weight: 0.45 lb

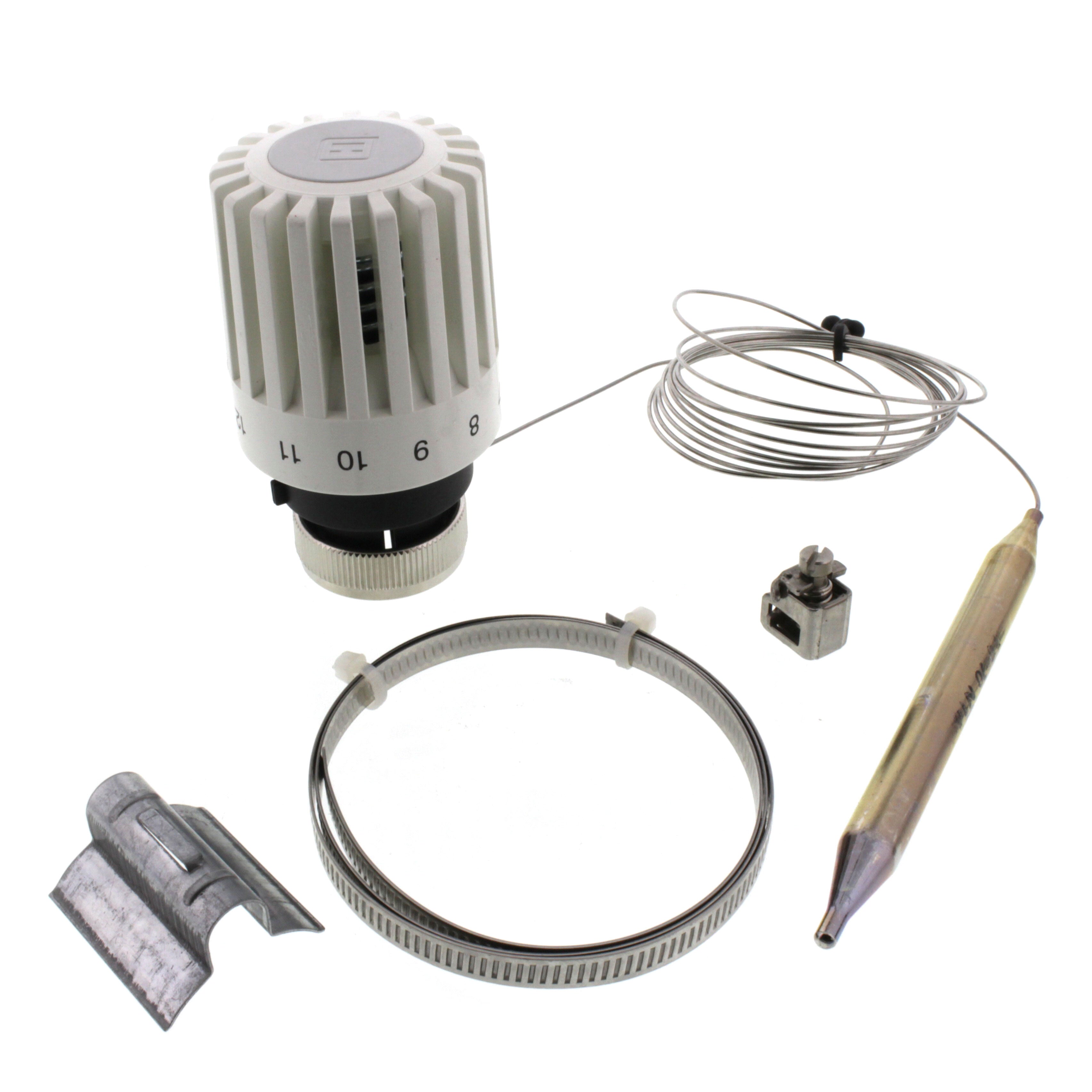

• Includes: External liquid-filled sensor with capillary tube, handwheel, connection nut, and spindle assembly
• Warranty: 1 Year
• Application: Radiator accessory
