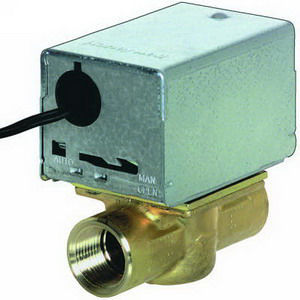

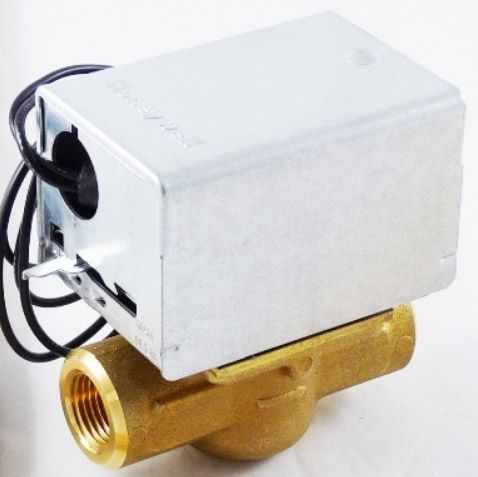

Honeywell V8043J1037 24V 3/4 Inch NPT Connection Low Voltage Motorized Zone Valve

Product Description

The Honeywell V8043J1037 is a low voltage, motorized zone valve designed for use in hot water heating systems. This valve features a 3/4 inch NPT connection and operates on 24V. Its durable brass body and stainless steel trim ensure reliable performance in demanding environments.

• Compact design for easy installation
• Valve and actuator can be serviced without draining the system
• Suitable for use in low pressure steam applications

Product Highlights

This motorized zone valve by Honeywell is ideal for controlling the flow of hot water in your heating system. Its normally open configuration and straight-through pattern make it efficient and reliable.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V8043J1037

Technical Specifications

• Type: 2-Way, Normally Open, Straight-Through
• Series: V8043
• Material: Brass Body, Stainless Steel Trim
• End Style: Sweat
• Dimensions: 4 Inches H x 3-23/32 Inches W x 2-3/8 Inches D
• Time Cycle: 15 sec Open
• Differential: 20 psi
• Nominal Size: 3/4 Inch
• Voltage Rating: 24 VAC, 50/60 Hz
• Amperage Rating: 0.42 A
• Pressure Rating: 125 psi
• Water Temperature: 125 deg F
• Coefficient of Volume: 3.5 Cv
• Electrical Connection: 18 Inch Leads
